Precision Silver Coated Concave Optic 90mm

Product Description

  • Overview
  • Company Profile
  • Detailed Photos
  • Product Description
  • Product Parameters
  • Coating as your quired
  • Production process
  • Optical design centre
  • Applications
Overview

Basic Info.

Customized
Customized
Optical Design
Available
Sample Time
7-20 Days
Diameter
0.5-600mm
Irregularity (P-V) @ 632.8nm
λ/4
Specification
optical glass, Si, Ge, CaF2,
Trademark
DG
Origin
China
HS Code
9001909001
Production Capacity
300.000 PCS /Month

Product Description




Company Profile
Hot Sales 90mm Glass Concave Lens with Sliver Coating

DG Optics specializes in the development, production, and sales of optical products made of any material including BK7,quartz,sapphire  etc. The product line covers thousands of categories, such as Dove Prisms, Filters, Rod Lenses, and sapphire watch Windows. Applications include defense and security, aerospace, optical ball covers for underwater cameras, automotive, medical, entertainment and design lighting, electronics and optoelectronics, laser technology, energy and utilities, universities and research, imaging lenses, microscopic inspection, and other industries. Many products and technologies have obtained national patents and software Copyrights, and have been approved by ISO9001 certificate.

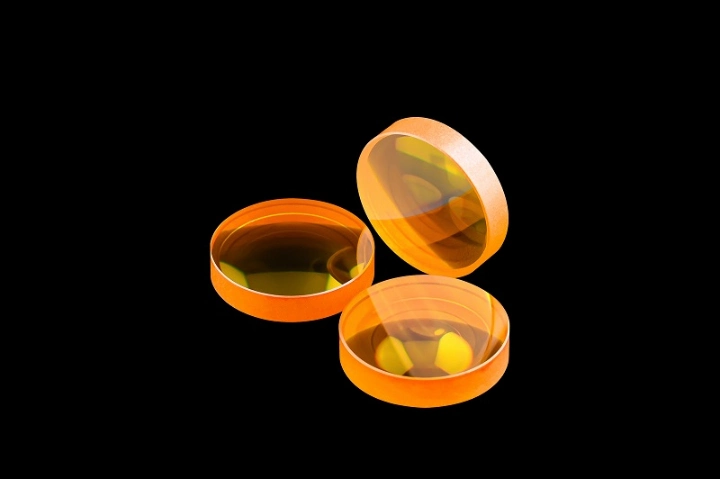

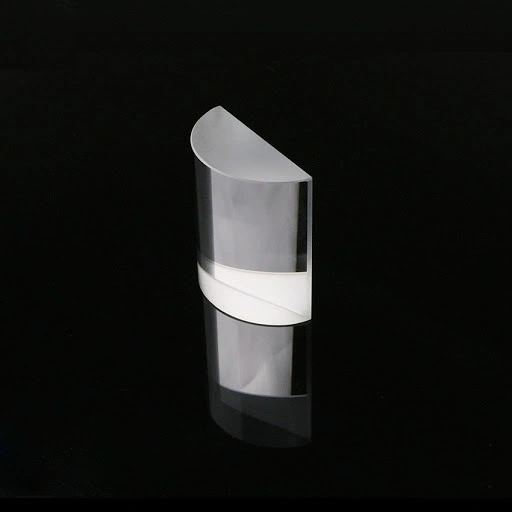

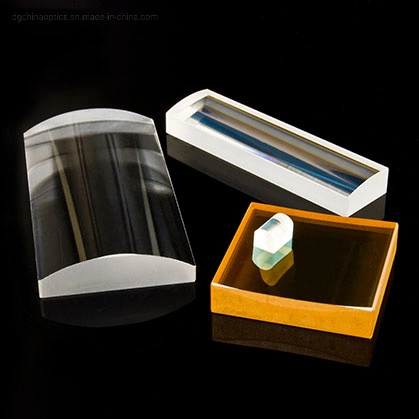

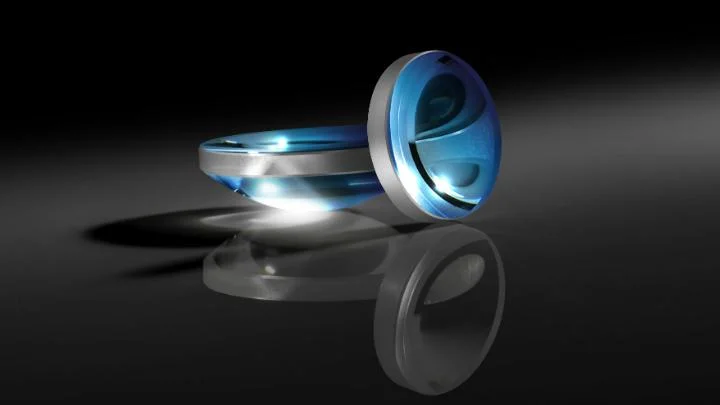

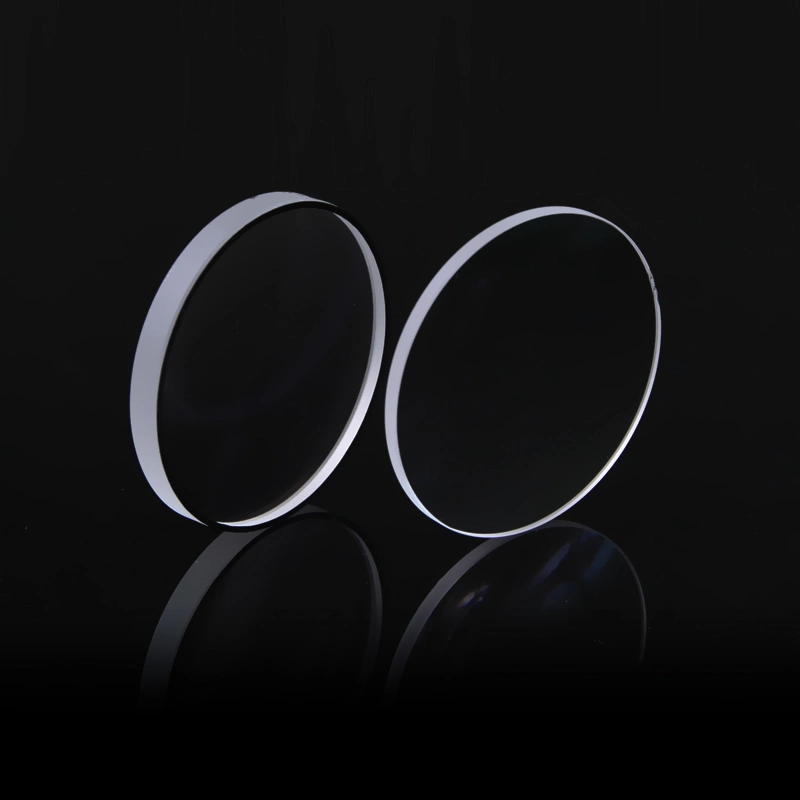

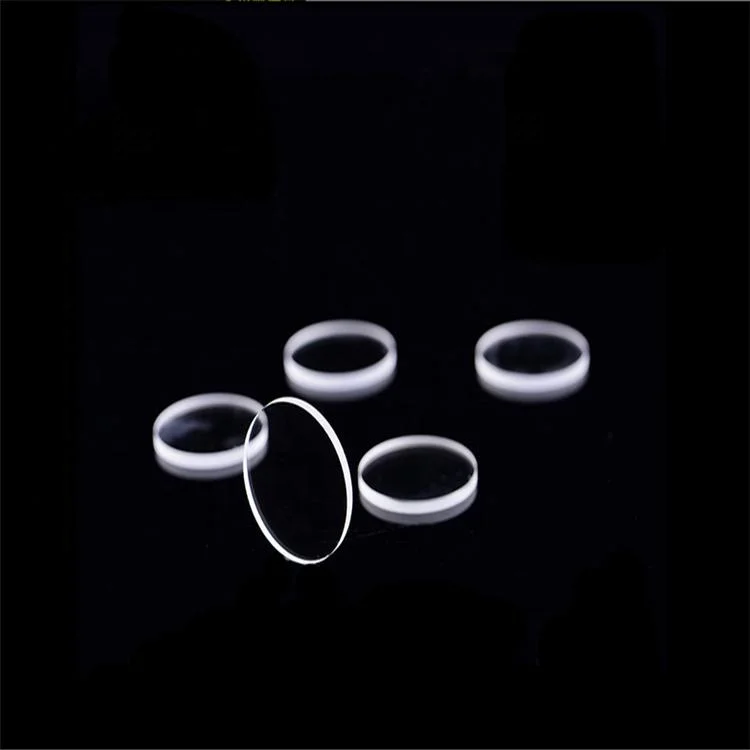

Detailed Photos

Hot Sales 90mm Glass Concave Lens with Sliver CoatingHot Sales 90mm Glass Concave Lens with Sliver CoatingHot Sales 90mm Glass Concave Lens with Sliver Coating

Product Description

Small aspheric glass lenses can be made by molding, which allows cheap mass production. Due to their low cost and good performance, molded aspheres are commonly used in inexpensive consumer cameras, camera phones, and CD players.They are also commonly used for laser diode collimation, and for coupling light into and out of optical fibers.

Larger aspheres are made by grinding and polishing. Lenses produced by these techniques are used in telescopes, projection TVs, missile guidance systems, and scientific research instruments. They can be made by point-contact contouring to roughly the right form which is then polished to its final shape. In other designs, such as the Schmidt systems, the aspheric corrector plate can be made by using a vacuum to distort an optically parallel plate into a curve which is then polished "flat" on one side. Aspheric surfaces can also be made by polishing with a small tool with a compliant surface that conforms to the optic, although precise control of the surface form and quality is difficult, and the results may change as the tool wears.

Product Parameters
Place of Origin:Jiangsu,China,  2 hours by car from Shanghai
Brand Name:DG Optics
Material BK7 ,Fused silica, Sapphire ,CaF2, ZnSe, Si, Ge
Coating UV, IR , SWIR, NIR ,VIS
Structure:ASPHERICAL
Surface Quality:40/20, 20/10, 5/0
Diameter 0.5-600mm
Clear ApertureOver 90%
Chamfer0.1-0.3 mm*45 degree
Focal Length Tolerance+/-1%
Irregularity (P-V) @ 632.8nm:λ/4

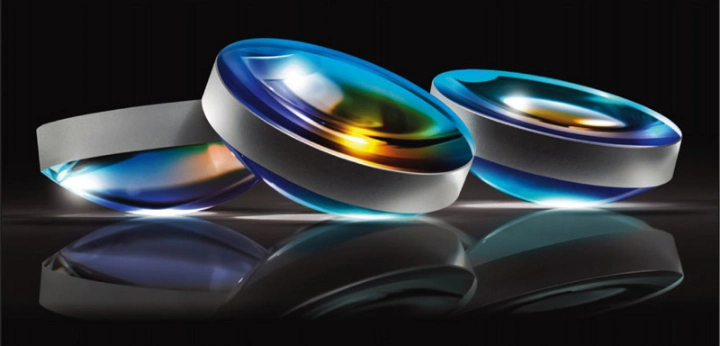

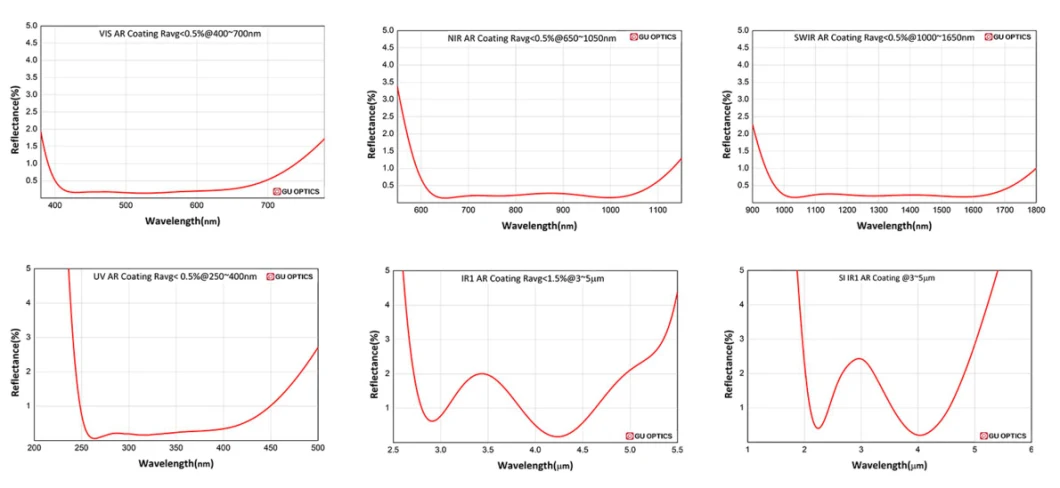

Coating as your quired

Hot Sales 90mm Glass Concave Lens with Sliver Coating

Hot Sales 90mm Glass Concave Lens with Sliver Coating

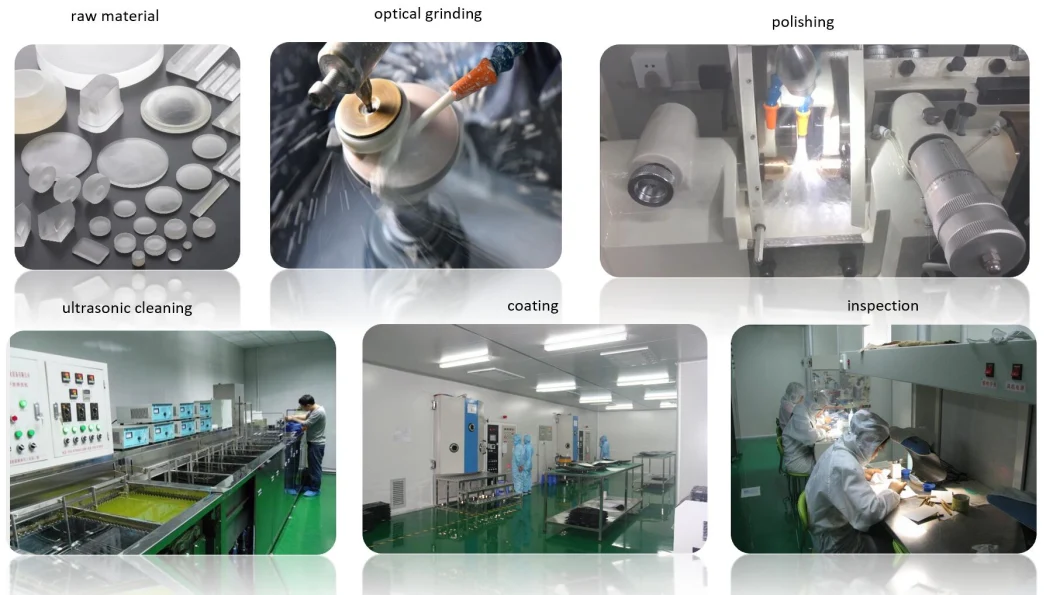

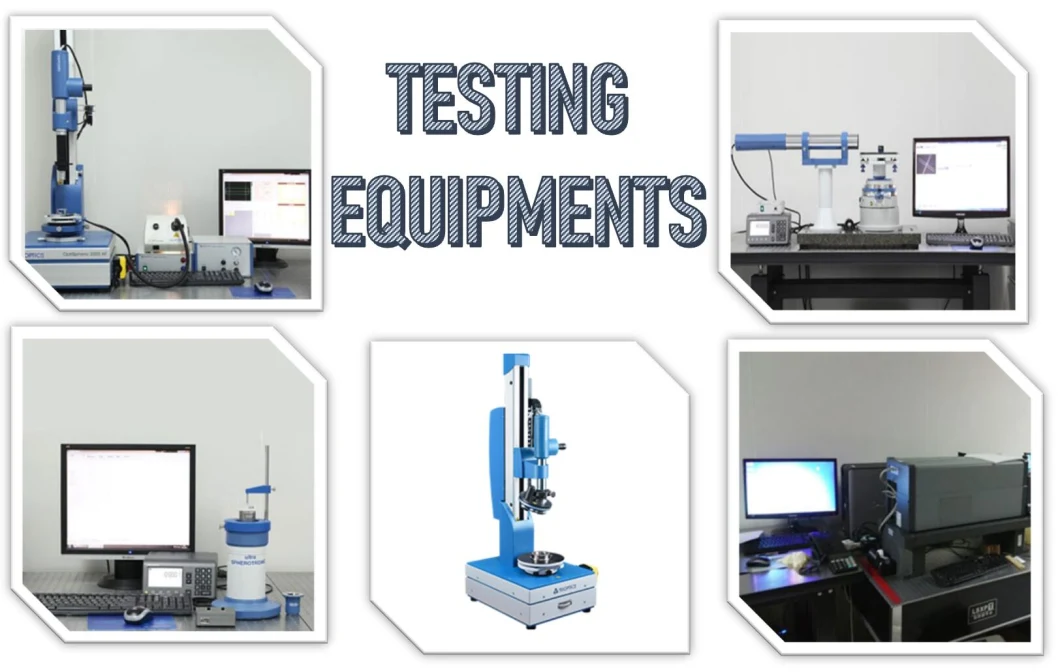

Production process

Hot Sales 90mm Glass Concave Lens with Sliver Coating

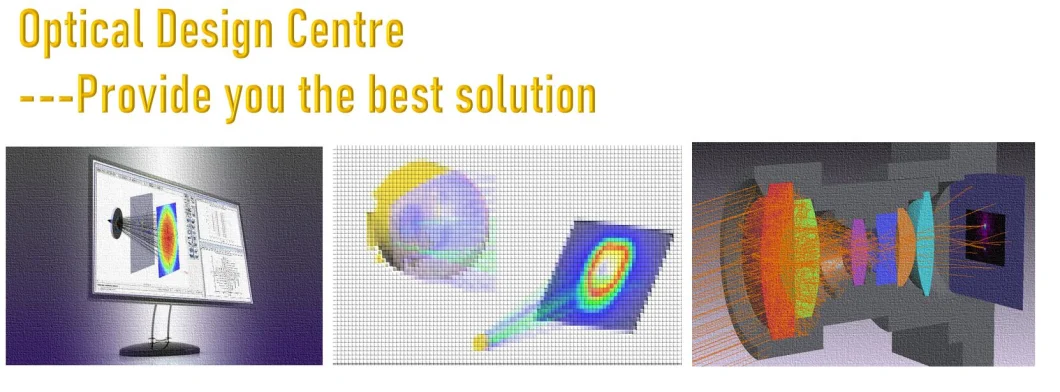

Optical design centre

Hot Sales 90mm Glass Concave Lens with Sliver Coating

Applications

Hot Sales 90mm Glass Concave Lens with Sliver CoatingOther lens types :
Hot Sales 90mm Glass Concave Lens with Sliver Coating
