Precision Round Optical Mirrors
Basic Info
Customized: Customized
Certification: Iso9001
Warranty: 3 Years
Origin: China
Transmittance: ≥90%
Material: Optical Glass
Lenses Color: Clear
Coating: Coating
Specification: BK7 glass or others
Trademark: DG
HS Code: 9001909001
Production Capacity: 300.000 PCS /Month
Shape: Single-lens
Optical Design: Available
Sample Time: 7-20 Days
Diameter: 0.5-600mm
Usage: Lighting, Medical, Optical, Photography, 3D Printer
Type: Aspherical
Model NO.: DG-DM010
Product Description
- Overview
- Detailed Photos
- Product Description
- Product Parameters
- Coating as your quired

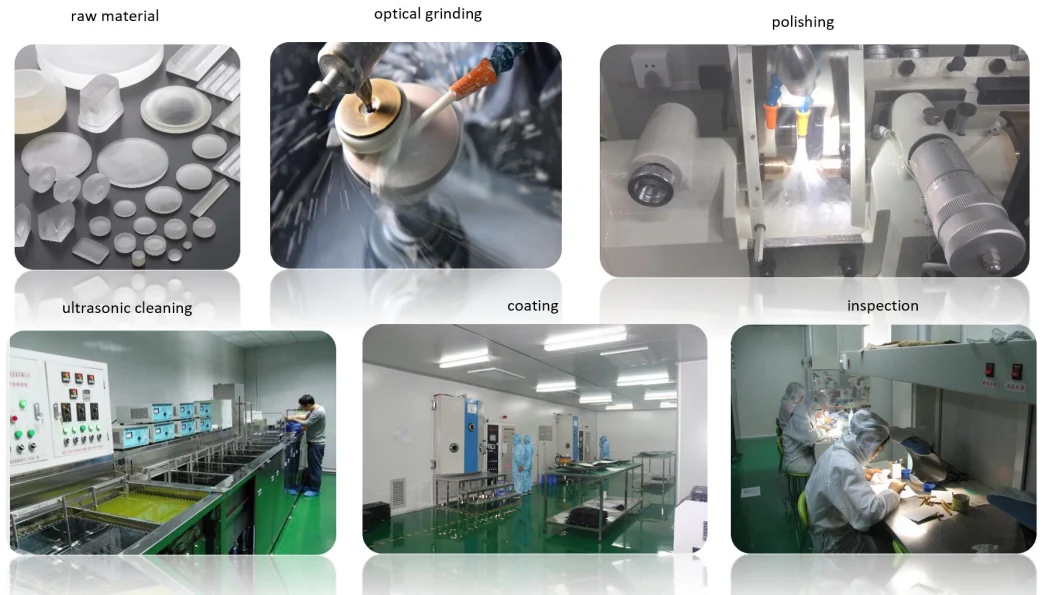

- Production process

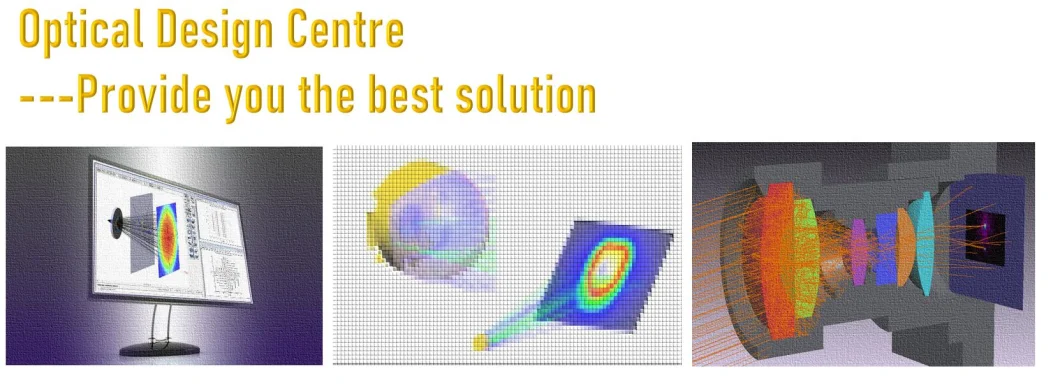

- Optical design centre
- Applications
Basic Info.
Product Description

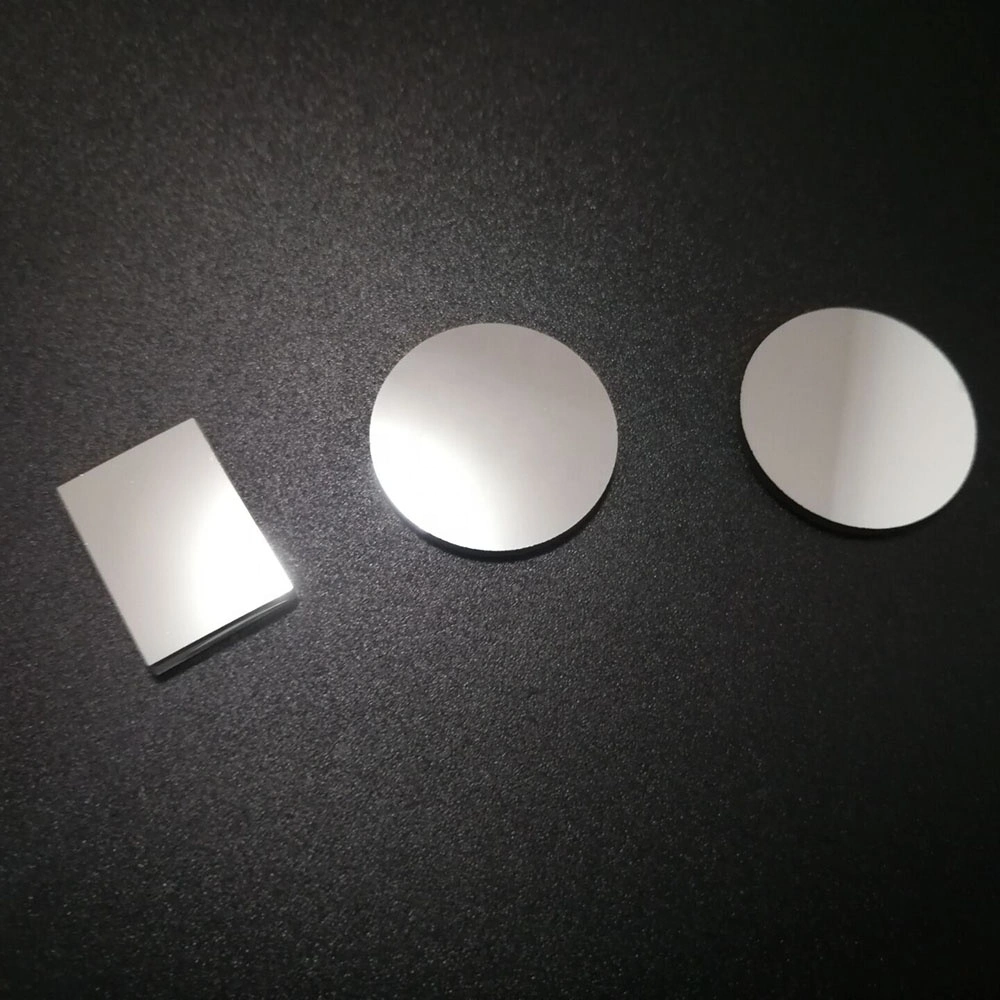

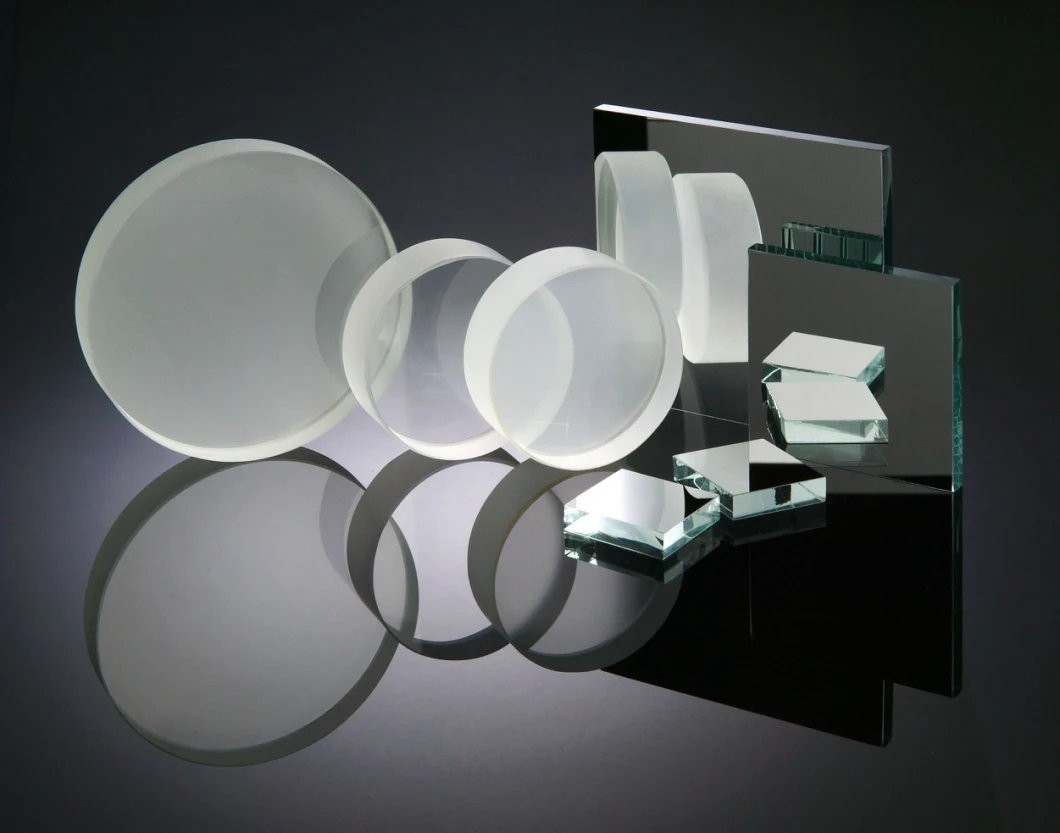

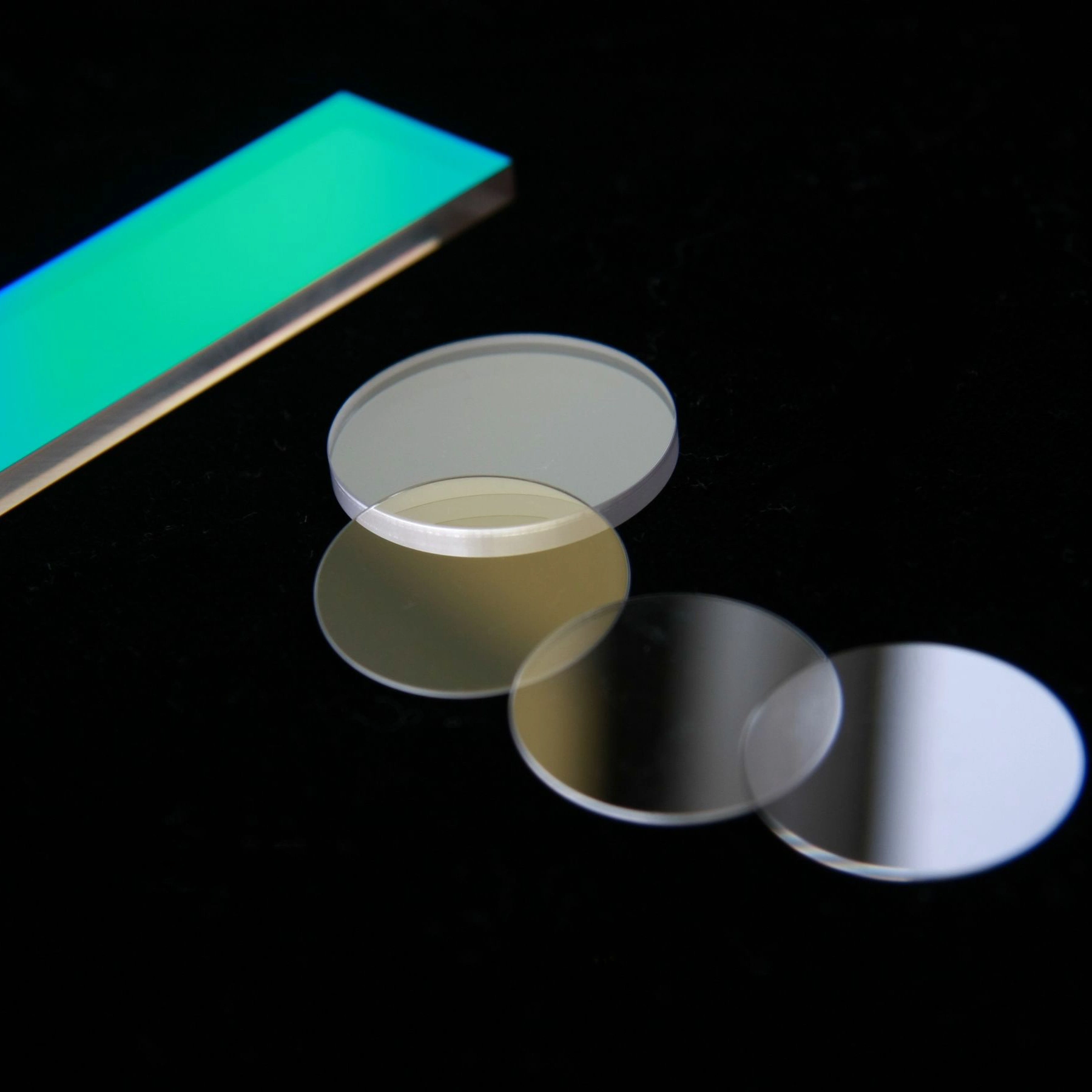

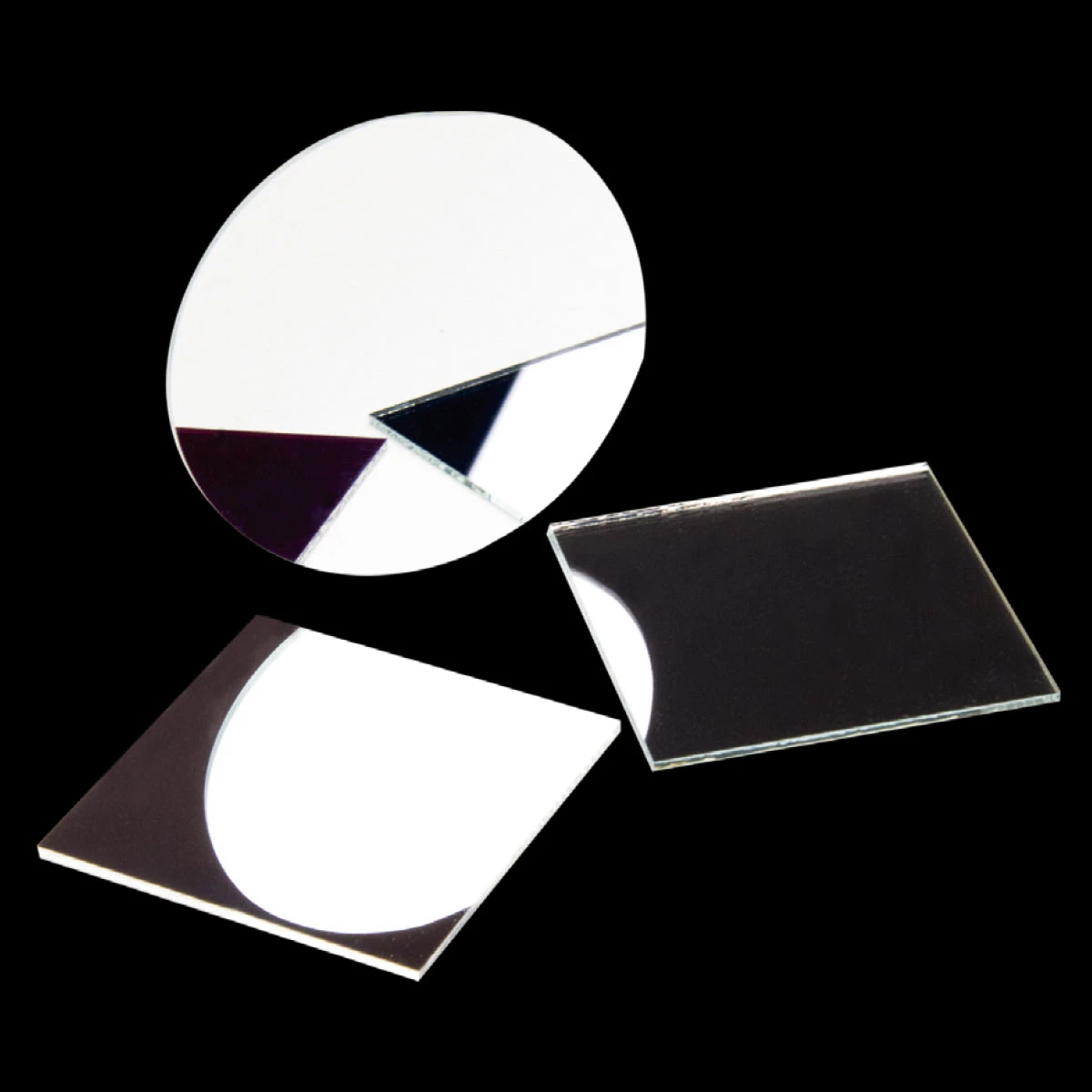

Optical Mirrors
DG Optics offers a full range of solutions for reflecting light to optimize performance in the UV-VIS-NIR spectral regions. Our high-quality optical mirrors are available in stock or can be fully customizable to meet your unique requirements. We offer flat, wedged, or Spherical Optical Mirrors manufactured from a wide variety of substrates polished in almost any configuration. Mirrors may be purchased uncoated or with a variety of metallic coatings, highly durable dielectric coatings, or as partially reflective mirrors.
Our vast range of catalog, semi-custom, and fully customized mirrors allows you to choose the exact size, substrate, curvature, coating type, and reflectivity for your unique project.
Optical Manufacturing Capabilities
- Fabricate polished optical mirrors from 1mm - 600mm.
- Manufacture plano and concave optical mirrors.
- Polish round, rectangular, and square substrates and can provide custom optical mirrors to meet your requirements.
- Produce optical mirrors from a variety of substrates including fused silica, quartz, N-BK7,and soda-lime glass.
- Achieve parallelism of < 2 arc seconds and offer wedged mirrors.

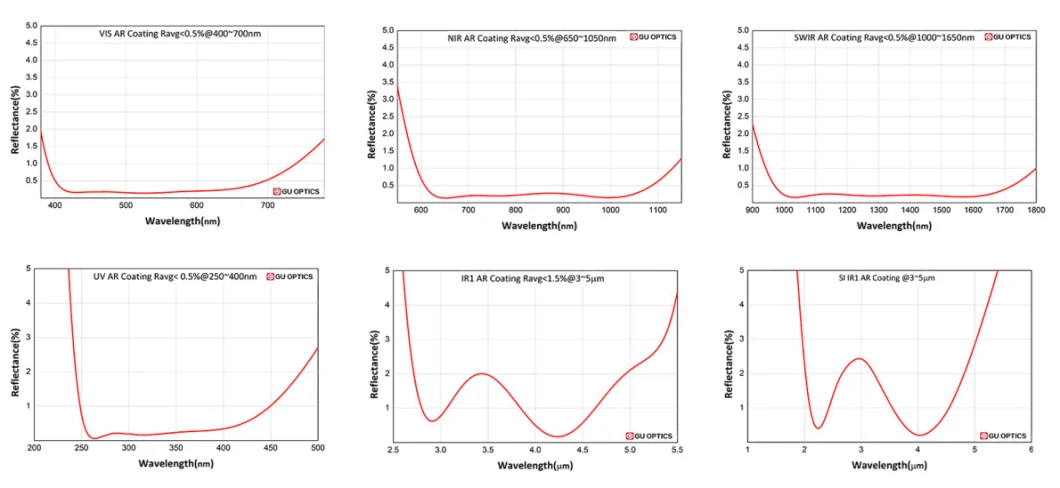

Coating Capabilities
- Offer substrates either uncoated or with a variety of reflective coatings coating optimized for performance in the UV-VIS-NIR spectral regions (190nm-2500nm) with the ability to provide highly reflective coatings out to 20 microns.
- Provide metallic, dielectric, and partially reflective coatings.
- Custom coatings available upon request.
| Place of Origin: | Jiangsu,China, 2 hours by car from Shanghai |
| Brand Name: | DG Optics |
| Material | BK7 ,Fused silica, Sapphire ,Soda-lime Glass, high borosilicate glass, |
| Coating | UV, IR , SWIR, NIR ,VIS |
| Structure: | round,square,rectangular |
| Surface Quality: | 40/20, 20/10, |
| Diameter | 0.5-600mm |
| Clear Aperture | Over 90% |
| Chamfer | 0.1-0.3 mm*45 degree |
| Flatness specified at 633nm | λ/20 |
| Parallelism | Available to < 2 arc seconds |

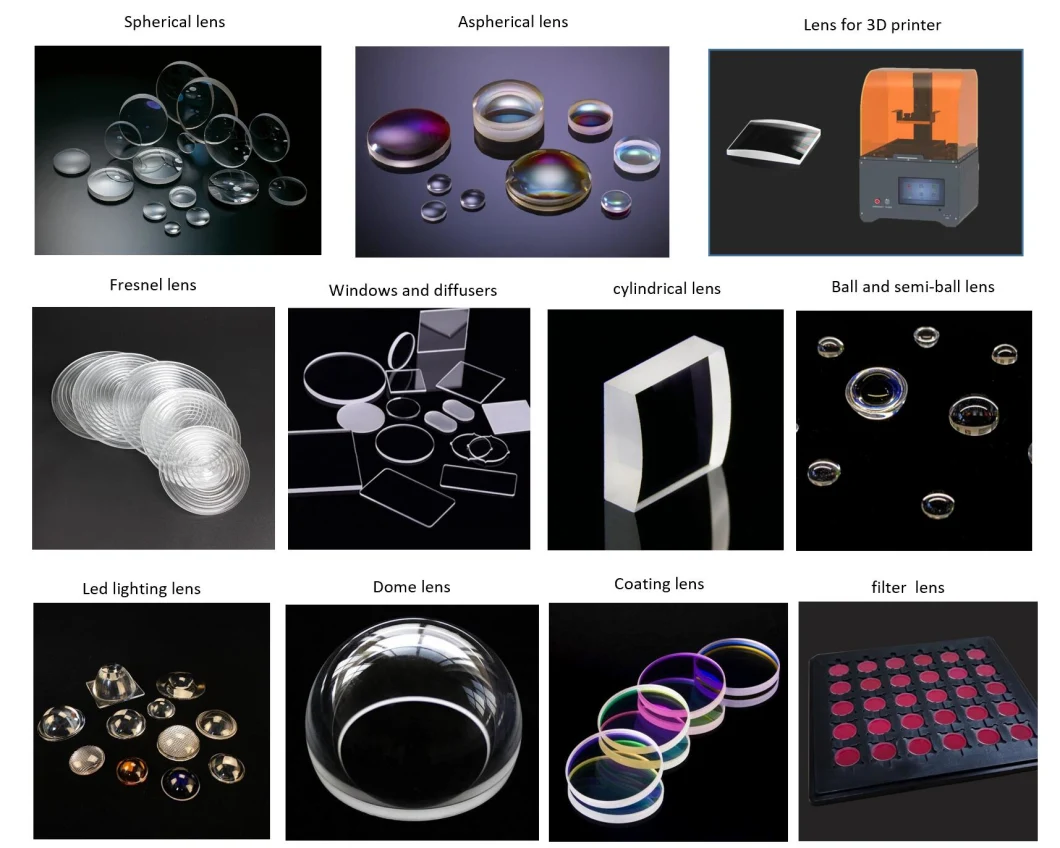

Other lens types :
Product Categories : Optical Mirrors
