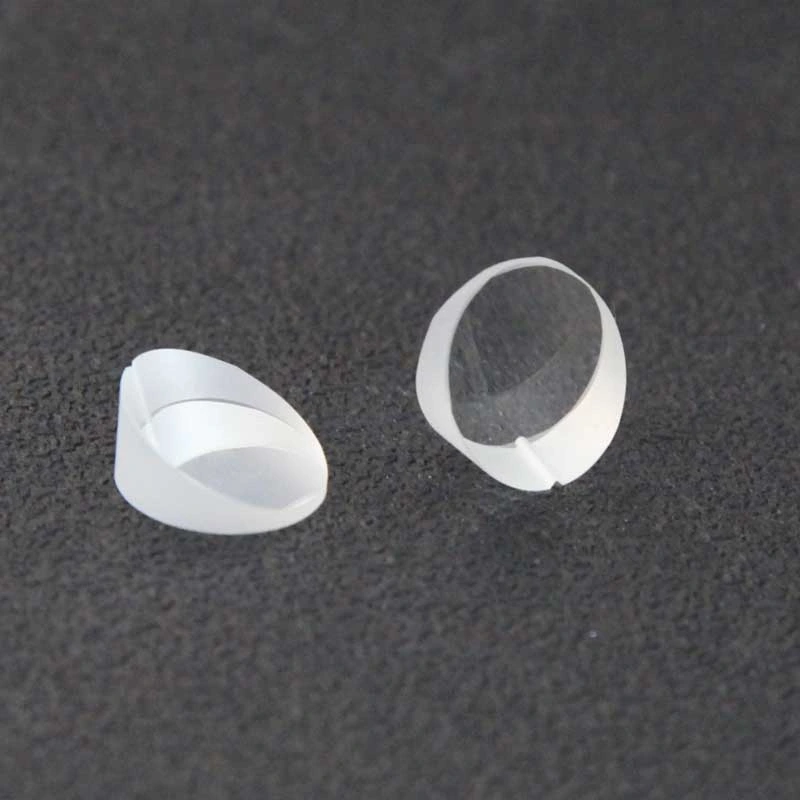

Optical Glass Prism Lens
Basic Info
Customized: Customized
Material: Optical Glass
Diameter: 10-300mm
Origin: China
HS Code: 9001909001
Specification: optical glass, Si, Ge, CaF2,
Production Capacity: 400.000PCS/Month
Transmittance: ≥90%
Trademark: DG
Usage: Lighting, Medical, Optical, Photography
Optical Design: Available
Sample Time: 7-20 Days
Materials: Environmental Protection
Irregularity (P-V): λ/4
Model NO.: DGI-10027
Product Description
- Overview
- FAQ
- custom prism from DG
Basic Info.
Model NO.
DGI-10027
Customized
Customized
Optical Design
Available
Sample Time
7-20 Days
Diameter
10-300mm
Materials
Environmental Protection
Irregularity (P-V)
λ/4
Specification
optical glass, Si, Ge, CaF2,
Trademark
DG
Origin
China
HS Code
9001909001
Production Capacity
400.000PCS/Month
Packaging & Delivery
Package size per unit product
10.00cm * 10.00cm * 10.00cm
Gross weight per unit product
4.000kg
Product Description
An optical prism is a solid, transparent optic with flat surfaces which refract light. Light enters through one surface, and may be rotated, deviated, or dispersed before leaving through another surface. These surfaces are highly polished, and the angles between them, the number of surfaces, and the position of them determine the function of the prism. Since Optical Prisms redirect light at a designated angle, they may be used to reflect light, to bend it within a system, to change the orientation of an image, or to break light up into it component wavelengths or polarizations. Isaac Newton used a simple prism to disperse a beam of white light into the full spectrum of component colors, proving that white light was in fact nothing but a combination of colors. This same dispersion technique is still used in spectrographs and refractometers. Optical Prisms can also be used, in reverse, to combine optical beams into one.
Optical prisms have at least two polished and flat surfaces which are designed to perform different functions such as changing the direction of light, combining or splitting optical beams, providing proper image orientation, dispersing light, or creating beam displacement. You can find Precision Prisms being used in optical systems for a variety of applications including direct view systems, multi-channel instruments, spectrometers, imaging cameras, laser scanners, anamorphic systems and more. Prisms may be presented as a plane parallel optical plate in applications such as changing light beam displacement, direction, and image orientation.
A simple triangular prism is an example of a dispersion prism. Since the refractive index of light changes as the wavelength changes, Snell's law tells us that the deflection angle of the light will change proportionally. For instance, red wavelengths (656.3 nm) are longer and will be refracted less than shorter wavelengths, such as green(587.6nm) or blue(486.1nm). This separates the colors/wavelengths of light as it travels through the prism. The dispersion a prism provides depends on its index dispersion curve and on the geometry of the prism. For spectroscopy and telecommunications, equilateral prisms are often used.

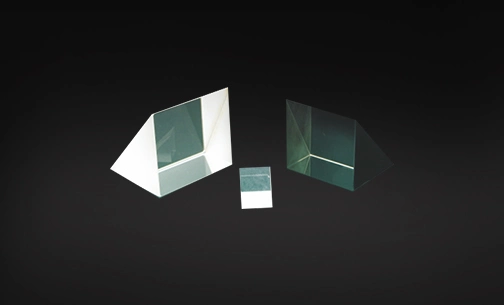

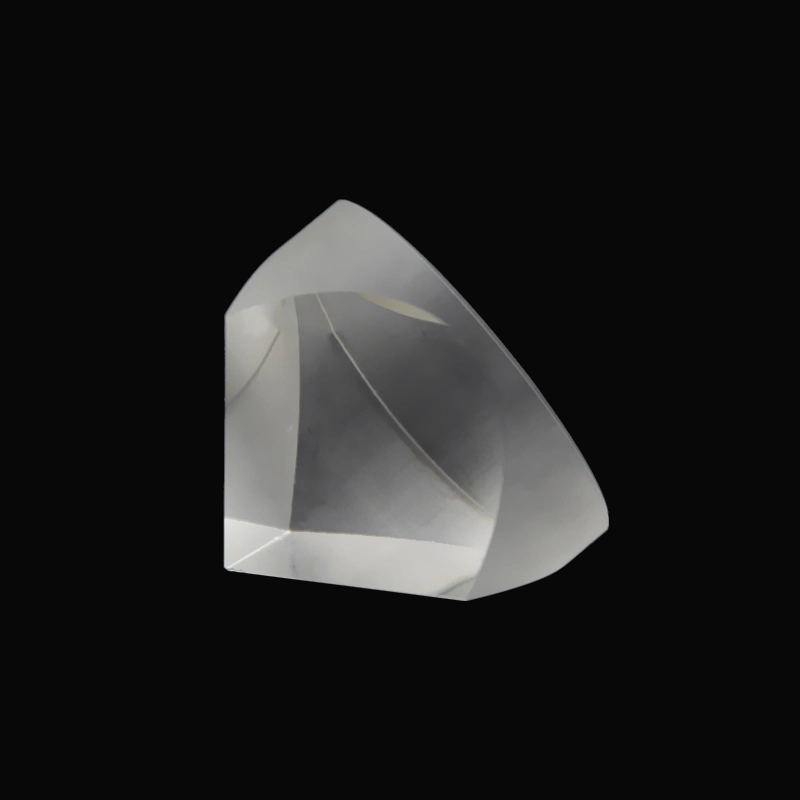

Right-angle Prisms, Corner Cube Prisms, Wedge Prisms, Roof Prisms, Dove Prisms, Polygon Prisms, and more. Our custom anti-reflection and reflection coatings cover wavelength ranges including UV, UV-VIS, VIS, VIS-NIR, SWIR, MWIR, LWIR, and multiple laser line options. On our site you will also find Precision Prisms with arcsecond angle tolerance which are designed to meet the most demanding needs in systems that require critical alignments. This includes precision imaging displacement systems, projection systems, and beam combiner systems.
Optical prism has many applications. Customers with special needs may need to order customised optical prisms to obtain the required results. At DG Optics, we design and manufacture highquality precision optical prism lenses according to unique specifications. Check out our options to build your own lenses, or request a quotation to see how DG provides customized lenses, optical prism lenses or other optical solutions at competitive prices.
Q: What's the way of shipping and cost?
A:(1) We accept DHL, Fedex, TNT, UPS, EMS etc.
(2) If you have your own express account, it's great.If not,we could help you ship them.
Q: What's the delivery time?
A: (1)For inventory: the delivery is 5 workdays after you place the order.
For customized products: the delivery is 2 or 3 weeks after you place the order.
(2) For the special-shaped products, the delivery is 4 or 6 workweeks after you place the order.
Q: Do you have standard products?
A: Our standard products in stock.
Q: Can I customize the products based on my need?
A: Yes, we can customize the material, specifications and optical coating for your optical components based on your needs.
A:(1) We accept DHL, Fedex, TNT, UPS, EMS etc.
(2) If you have your own express account, it's great.If not,we could help you ship them.
Q: What's the delivery time?
A: (1)For inventory: the delivery is 5 workdays after you place the order.
For customized products: the delivery is 2 or 3 weeks after you place the order.
(2) For the special-shaped products, the delivery is 4 or 6 workweeks after you place the order.
Q: Do you have standard products?
A: Our standard products in stock.
Q: Can I customize the products based on my need?
A: Yes, we can customize the material, specifications and optical coating for your optical components based on your needs.
Optical prism has many applications. Customers with special needs may need to order customised optical prisms to obtain the required results. At DG Optics, we design and manufacture highquality precision optical prism lenses according to unique specifications. Check out our options to build your own lenses, or request a quotation to see how DG provides customized lenses, optical prism lenses or other optical solutions at competitive prices.
