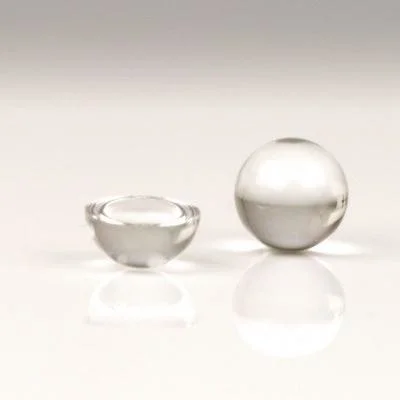

High Quality Bk7 K9 20mm Half Ball Lens

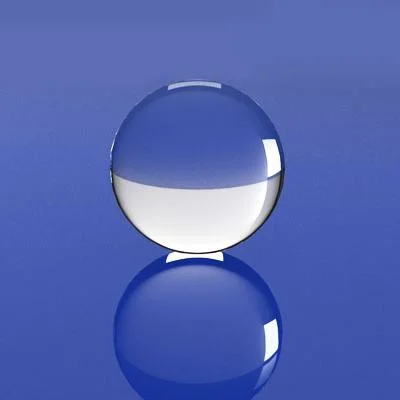

A Ball Lens consists of a highly transparent spherical ball, usually made of solid glass (fused silica) or another optical material with index of refraction less than. Most ball lenses are made with small diameters - a few millimeters or even less than a millimeter.  The optical physics can be understood by realizing these lenses are, equivalently, two plano-convex lenses separated by a parallel plane. Spherical aberration is inherent in all ball lenses, but becomes a problem if light propagation isn't restricted to a small fraction of the lenses cross-section.  The ratio of the diameter of the ball lens and the diameter of the input source is denoted as d/D, and when this number increases, the focus spot size at the back focal length of the lens also increases.

A Ball Lens consists of a highly transparent spherical ball, usually made of solid glass (fused silica) or another optical material with index of refraction less than. Most ball lenses are made with small diameters - a few millimeters or even less than a millimeter.  The optical physics can be understood by realizing these lenses are, equivalently, two plano-convex lenses separated by a parallel plane. Spherical aberration is inherent in all ball lenses, but becomes a problem if light propagation isn't restricted to a small fraction of the lenses cross-section.  The ratio of the diameter of the ball lens and the diameter of the input source is denoted as d/D, and when this number increases, the focus spot size at the back focal length of the lens also increases.

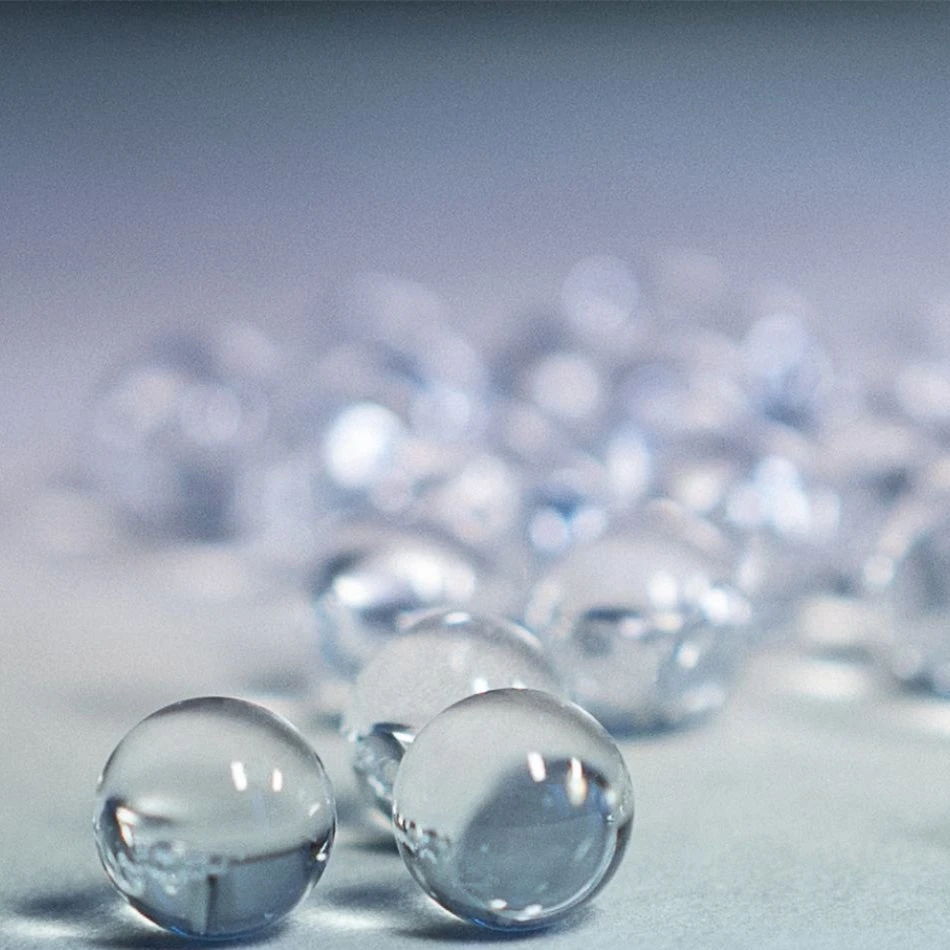

Ball lenses are used particularly as beam collimators for optical fibers (fiber collimators) and for fiber-to-fiber coupling. They are also suitable for miniature optics with applications like barcode scanning, as objective lenses in endoscopy and for optical sensors. There are also microscope objectives (particularly immersion objectives) which have a hyperhemisphere (e.g., somewhat more than a hemisphere) as the first lens. Ball lens is an important optical element, mainly made of optical glass and other materials. It is used for coupling between optical fibres, between lasers and optical fibres, and between optical fibres and detectors, or for the collimation of fibre beams in dense wavelength division multiplexers. Ball lenses are also known as glass beads. It is a solid or hollow glass bead with a diameter of several microns to dozens of microns. Its application fields involve chemical industry, military industry, aerospace, transportation, petroleum, light industry, medical care and other departments. It has the characteristics of good surface finish, good reflectivity of light, directional reflectivity, high impact strength, chemical stability, light weight, etc.

Ball lenses have many applications. Customers with special needs may need to order customised ball lenses to get the required results. At DG Optics, we design and manufacture high-quality precision ball lenses according to unique specifications. Check out our options to build your own lenses, or request a quotation to learn how DG provides customised lenses, ball lenses or other optical solutions at competitive prices.

Compared with a simple lens, the ball lens is made of a single glass substrate, which can focus or output parallel light, depending on the geometry of the input source. It can provide higher accuracy and image quality. At DG Optics, we have more than 25 years of experience in providing precision Optical lenses for companies around the world. Contact us for quotation and apply to DG for customised aspheric lenses immediately.

Q1:Can you send me free sample or Can I have a sample order ?
A: Yes, We welcome your sample order, and we're also willing to send you free sample to test and check quality. if we don't have stock , then you can place a sample order.
Q2: How many days can I get my package after placing order?
A: We arrange shipping in 24 business hours with 3-5 business days fast shipping method if stock is enough.
Q3: Can I cutomize my own Logo/Design?
A: Yes, you can, please email us or contact us via platform to confirm more details
Q4: What's the delivery time?
A:  (1)For inventory: the delivery is 5 workdays after you place the order.
          For customized products: the delivery is 2 or 3 weeks after you place the order.
     (2) For the special-shaped products, the delivery is 4 or 6 workweeks after you place the order.
Q5: Do you have standard products?
A: Our standard products in stock.
Q6: Can I customize the products based on my need?
A: Yes, we can customize the material, specifications and optical coating for your optical components based on your needs.
