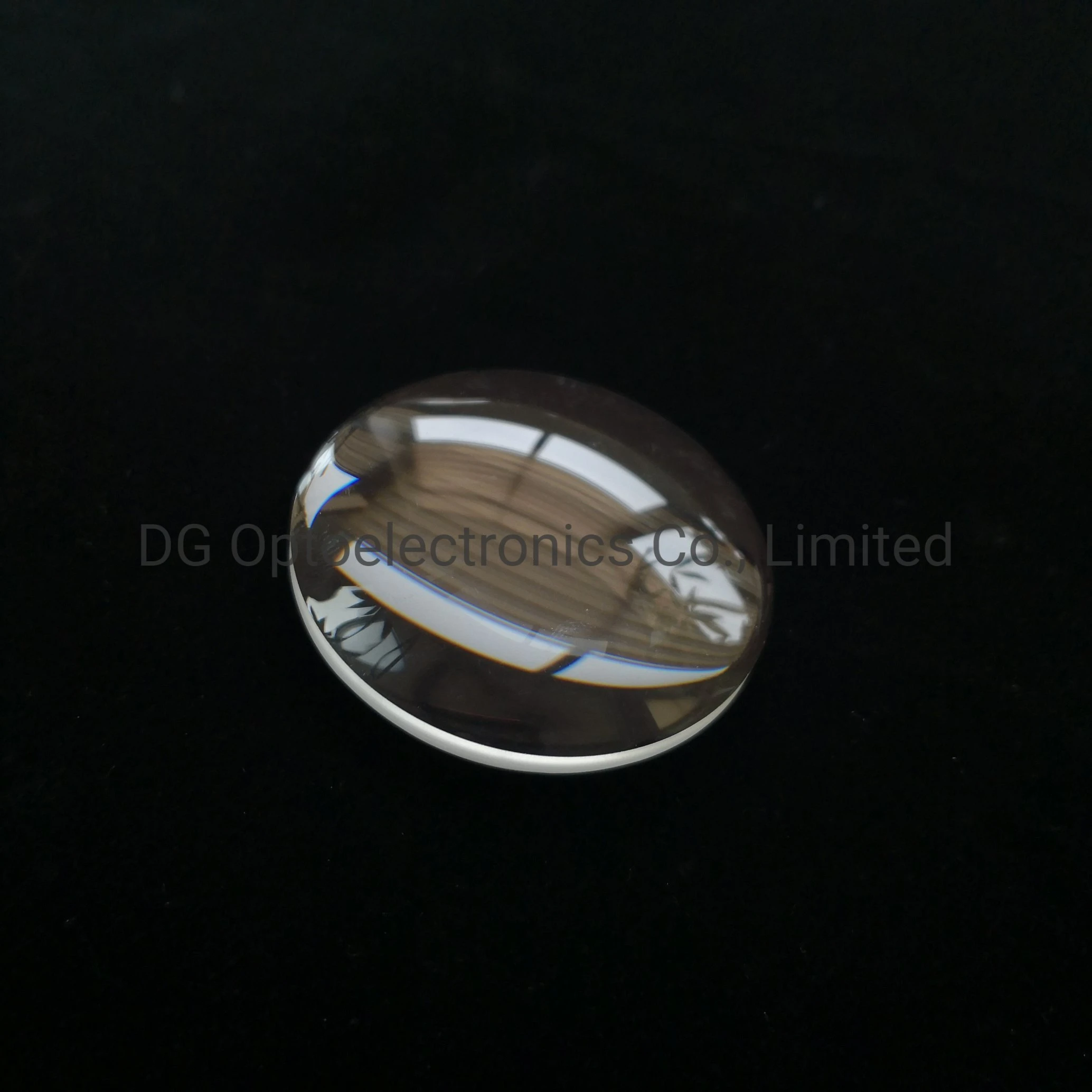

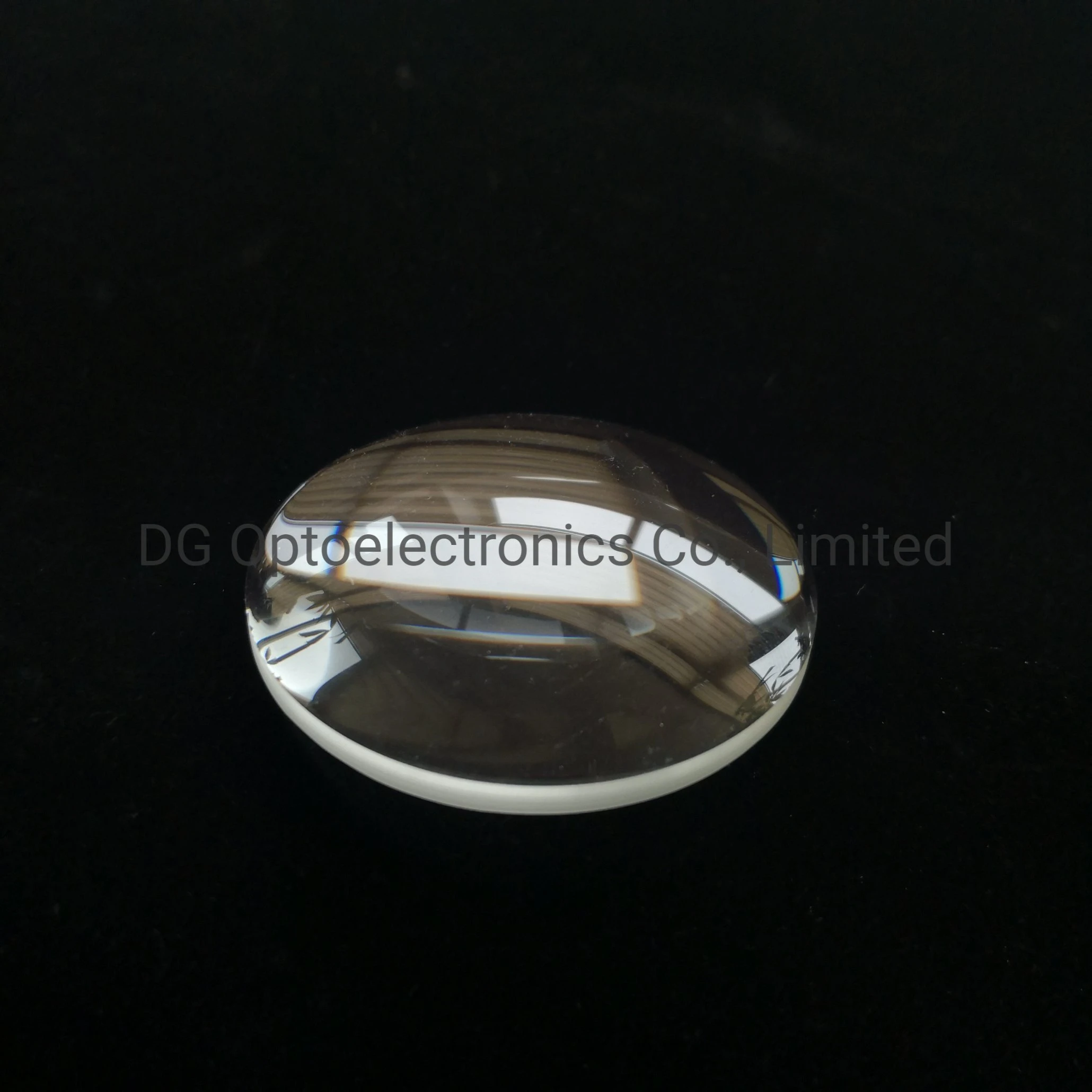

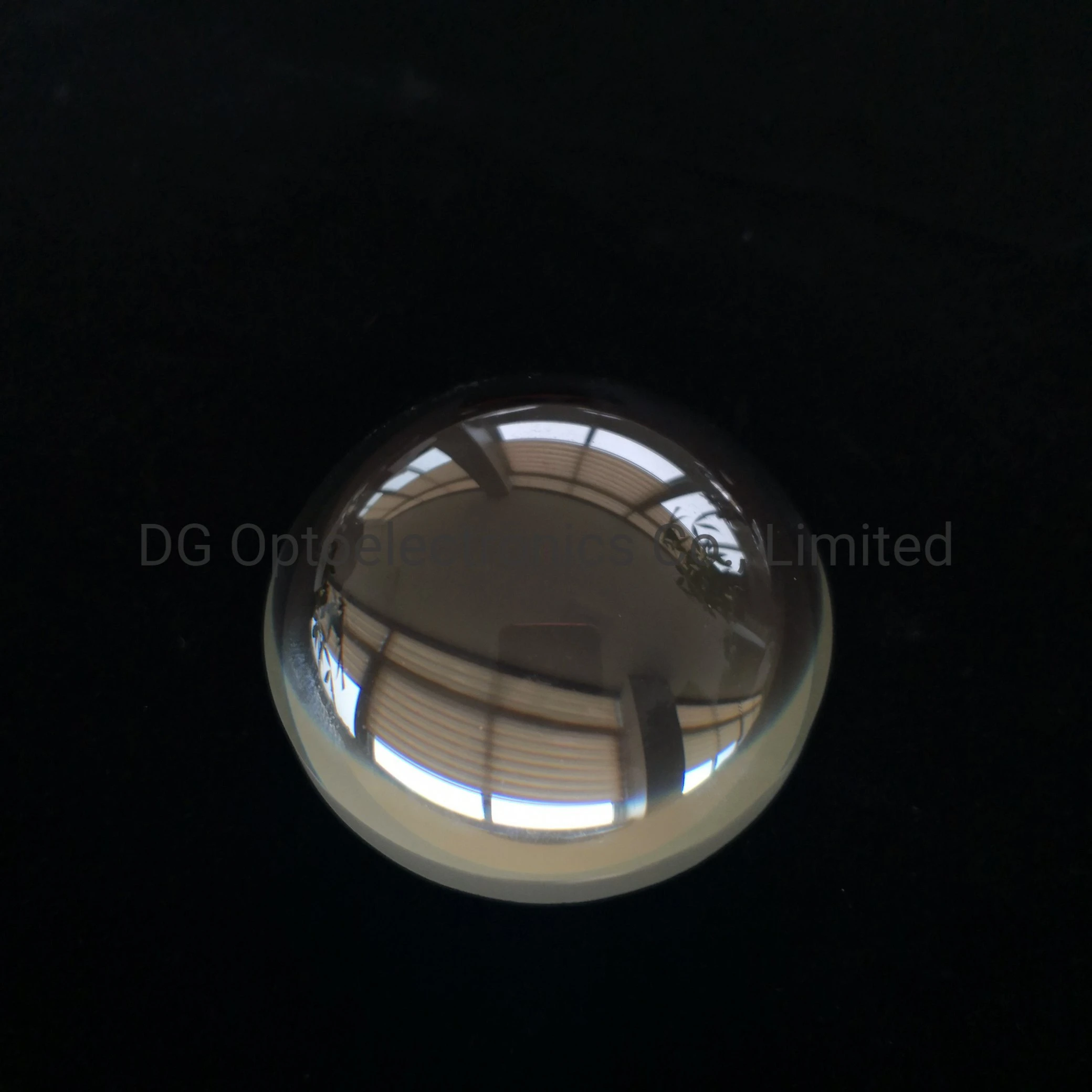

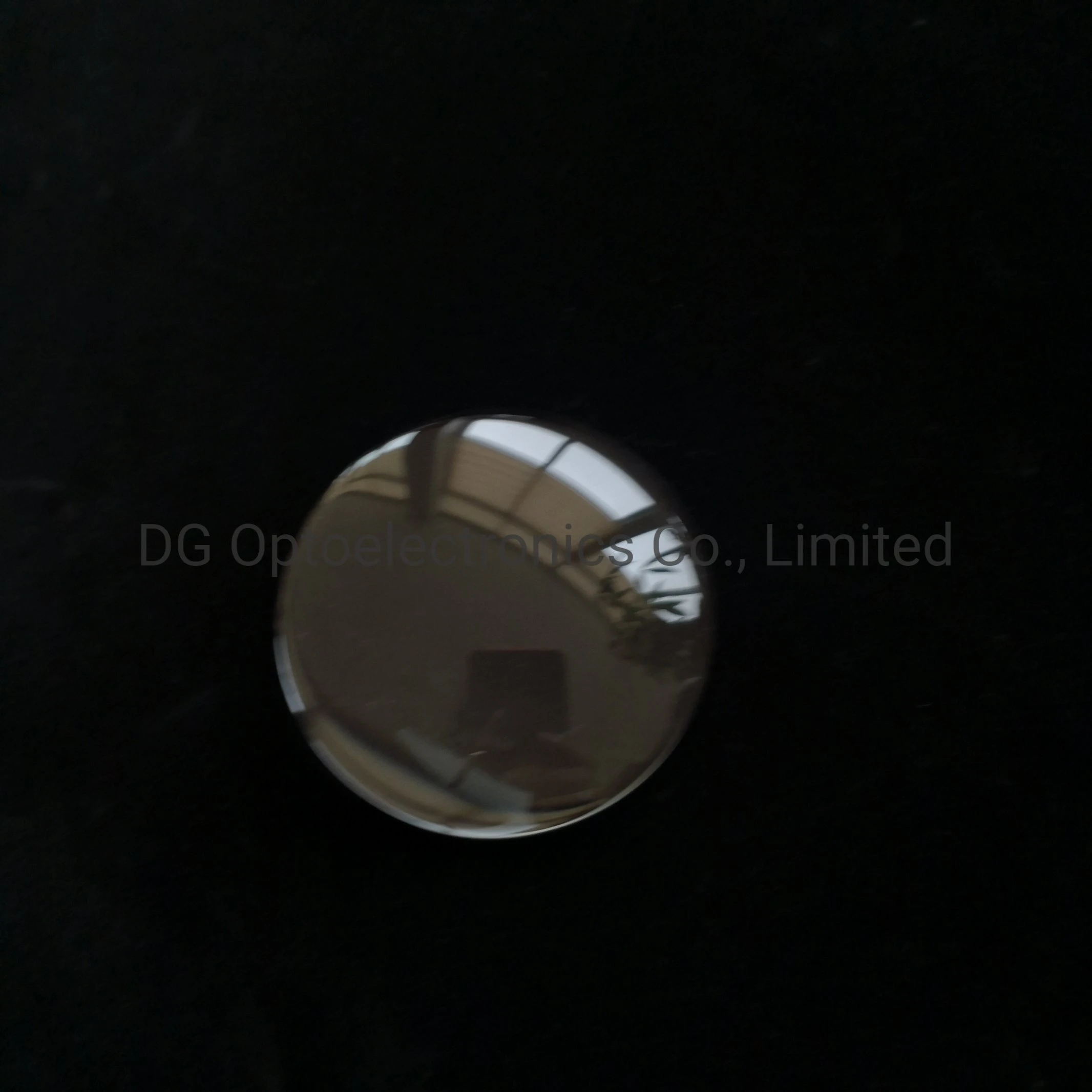

Laser Convex Lens with Coating
Basic Info
Lenses Color: Clear
Certification: Iso9001
Customized: Customized
Type: Convex Lens
Material: Optical Glass
Coating: Ar Coating
Warranty: 3 Years
Shape: Single-lens
Origin: China
HS Code: 9001909001
Specification: optical glass, Si, Ge, CaF2,
Transmittance: ≥90%
Trademark: DG
Production Capacity: 300.000 PCS /Month
Optical Design: Available
Sample Time: 7-20 Days
Diameter: 0.5-600mm
Irregularity (P-V) @ 632.8nm: λ/4
Usage: Lighting, Medical, Optical, Photography, 3D Printer
Product Description
- Overview
- Company Profile

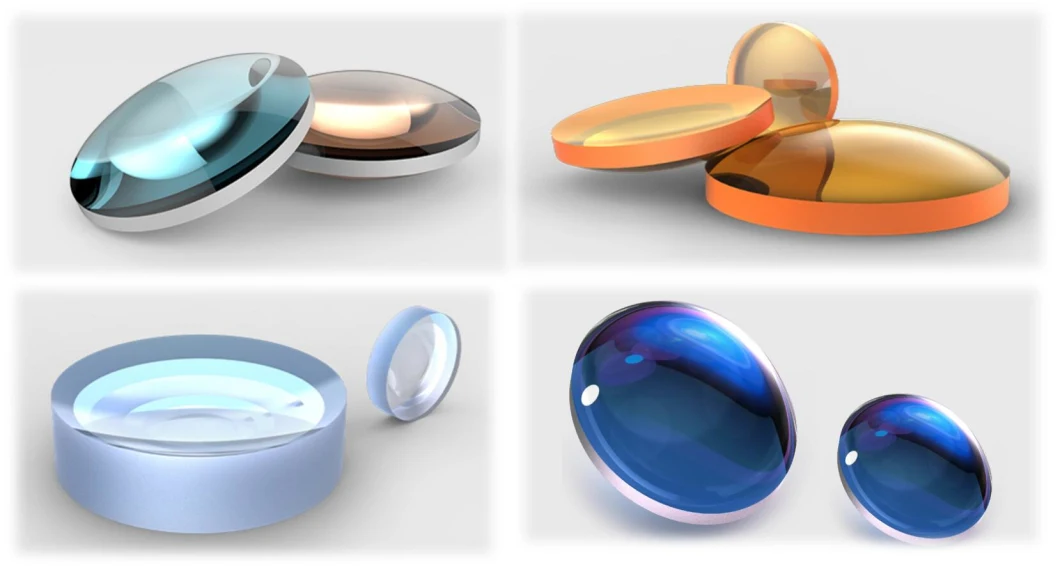

- All lens types
- Product Description
- Product Parameters

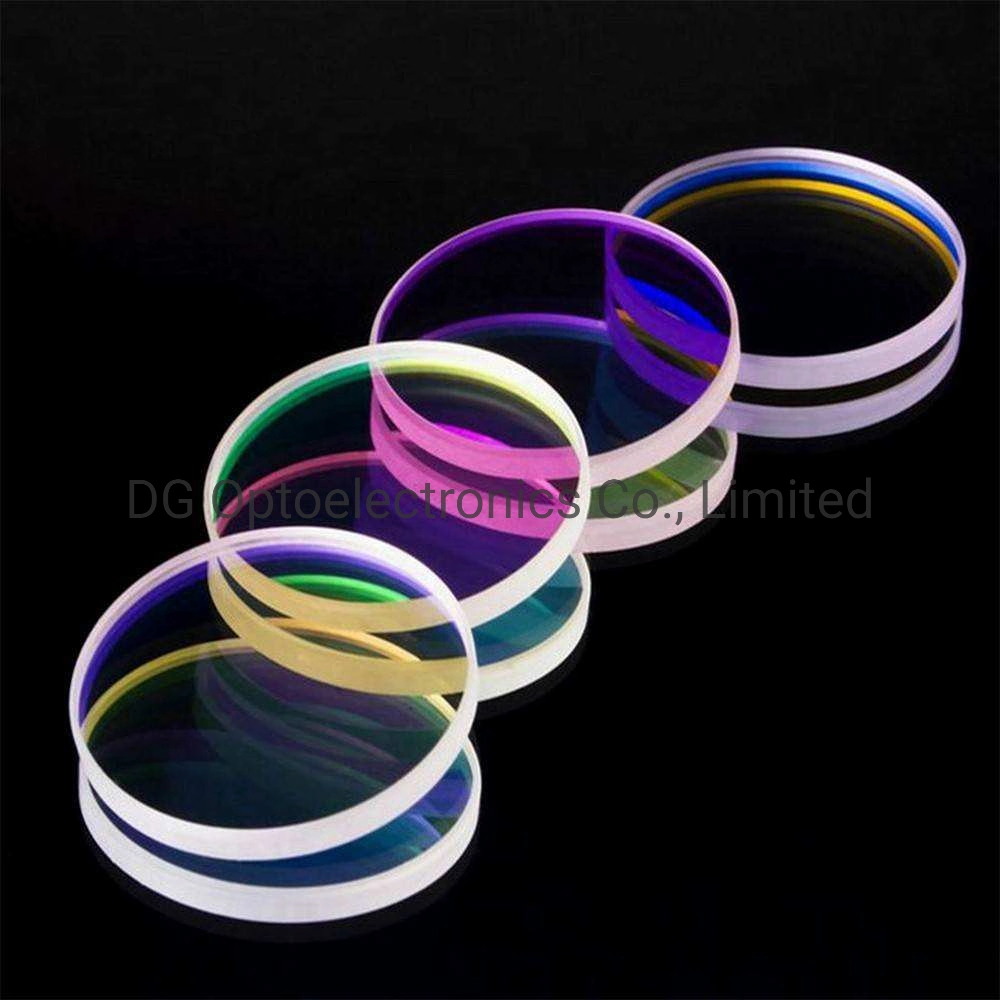

- Coating as your quired

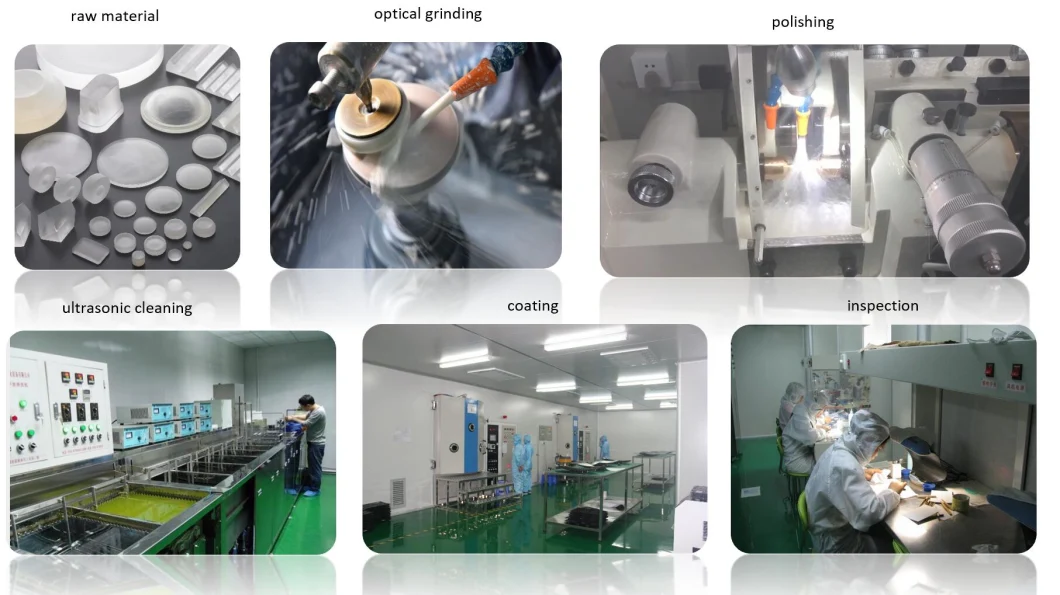

- Production process
- Optical design centre
- Applications
Basic Info.
Product Description
DG Optics specializes in the development, production, and sales of optical products made of any material including BK7,quartz,sapphire etc. The product line covers thousands of categories, such as Dove Prisms, Filters, Rod Lenses, and sapphire watch Windows. Applications include defense and security, aerospace, optical ball covers for underwater cameras, automotive, medical, entertainment and design lighting, electronics and optoelectronics, laser technology, energy and utilities, universities and research, imaging lenses, microscopic inspection, and other industries. Many products and technologies have obtained national patents and software Copyrights, and have been approved by ISO9001 certificate.

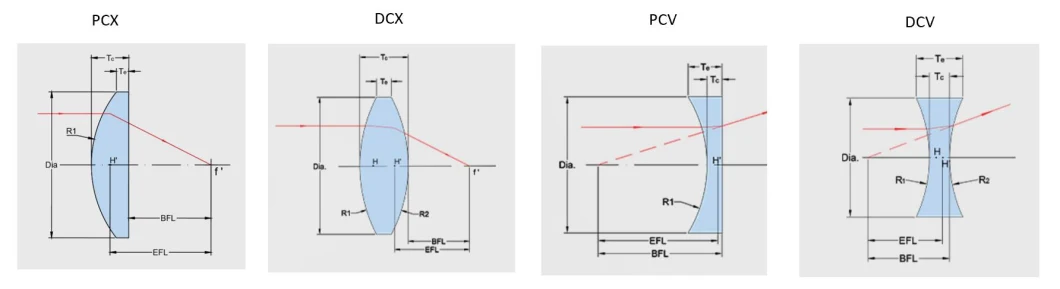

PCX :
These uncoated plano-convex lenses are ideal for a multitude of optics and photonics applications. Ideal for collimation and focusing applications utilizing monochromatic illumination.
DCX :
Ideal for image relay, and for imaging of objects at close conjugates
PCV:
Ideal for beam expansion, light projection, and expanding the focal length of an optical system.
DCV:
Ideal for beam expansion, light projection, and expanding the focal length of an optical system. Also known as biconcave lenses.
| Place of Origin: | Jiangsu,China, 2 hours by car from Shanghai |
| Brand Name: | DG Optics |
| Material | BK7 ,Fused silica, Sapphire ,CaF2, ZnSe, Si, Ge |

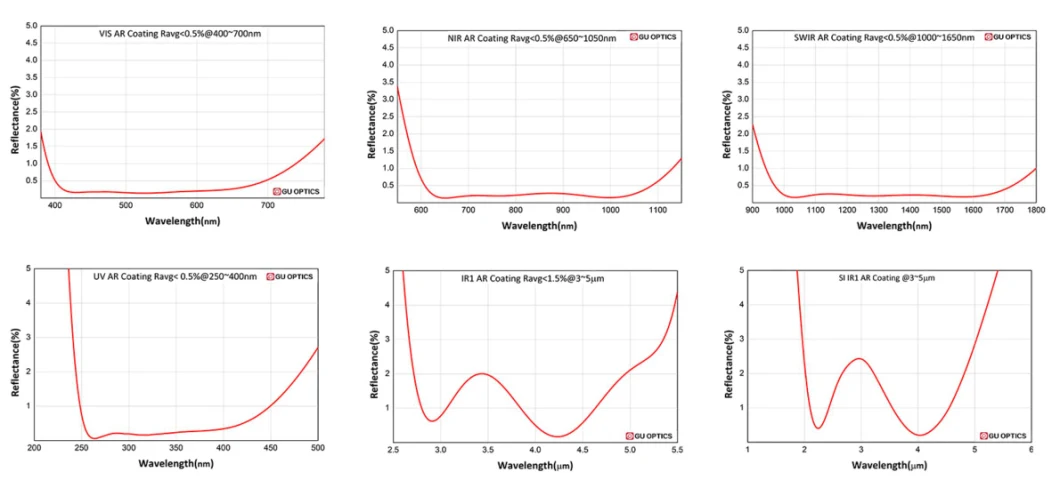

| Coating | UV, IR , SWIR, NIR ,VIS |
| Structure: | PCX, DCX, PCV, DCV |
| Surface Quality: | 40/20, 20/10, 5/0 |
| Diameter | 0.5-600mm |
| Clear Aperture | Over 90% |
| Chamfer | 0.1-0.3 mm*45 degree |
| Focal Length Tolerance | +/-1% |
| Irregularity (P-V) @ 632.8nm: | λ/4 |
Other lens types :
Product Categories : Optical lenses > Others Optical lenses
