Custom K9 Agglutination Ar Coated Beam Splitter Prism
Basic Info
Material: Glass
Customized: Customized
Origin: China
Trademark: DG
HS Code: 9001909001
Optical Design: Available
Sample Time: 7-20 Days
Specification: BK7 glass or quartz
Type: Rectangular Prism
Usage: Beam Dispersion, Beam Split
Shape: Cube Corner Prism
Application: Digital Device
Production Capacity: 400.000 PCS /Month
Materials: Environmental Protection
Irregularity (P-V): λ/4
Model NO.: DGI-10021
Product Description
- Overview
- Product Description
- Product Parameters
- Coating as your quired
- Production process
- Certifications
- Application
- Any other lens
Basic Info.
Model NO.
DGI-10021
Sample Time
7-20 Days
Materials
Environmental Protection
Irregularity (P-V)
λ/4
Optical Design
Available
Specification
BK7 glass or quartz
Trademark
DG
Origin
China
HS Code
9001909001
Production Capacity
400.000 PCS /Month
Product Description
Optical Prisms are used to redirect light at a designated angle. Optical Prisms are ideal for ray deviation, or for adjusting the orientation of an image. An Optical Prism's design determines how light interacts with it. When light enters an Optical Prism, it either reflects off an individual surface or several surfaces before exiting, or is refracted as it travels through the substrate.
Optical prism has many applications. Customers with special needs may need to order customised optical prisms to obtain the required results. At DG Optics, we design and manufacture highquality precision optical prism lenses according to unique specifications. Check out our options to build your own lenses, or request a quotation. Optical prisms have at least two polished and flat surfaces which are designed to perform different functions such as changing the direction of light, combining or splitting optical beams, providing proper image orientation, dispersing light, or creating beam displacement. You can find Precision Prisms being used in optical systems for a variety of applications including direct view systems, multi-channel instruments, spectrometers, imaging cameras, laser scanners, anamorphic systems and more. Prisms may be presented as a plane parallel optical plate in applications such as changing light beam displacement, direction, and image orientation.
| Place of Origin: | Jiangsu,China, 2 hours by car from Shanghai |
| Brand Name: | DG Optics |
| Material | BK7 ,Fused silica, Quarzt, Si, Ge, ZnSe |
| Coating | UV, IR , SWIR, NIR ,VIS |
| Structure: | round,square,rectangular |
| Surface Quality: | 40/20, 60/40 |
| Pyramid Tolerance (arcmin) | ±1 |
| Chamfer | 0.1-0.3 mm*45 degree |
| Surface Flatness | λ/20 |
| Angle Tolerance (arcsec) | ±15 |
A prism, a transparent object surrounded by two planes that intersect but are not parallel to each other, is used to spectroscopic or disperse beams. In modern life, prism is widely used in digital equipment, science and technology, medical devices and other fields. At DG Optics, we have more than 25 years of experience in providing precision Optical lenses for companies around the world. Contact us for quotation and apply for DG for optical prism customisation immediately.
FAQ
Q1:Can you send me free sample or Can I have a sample order ? A: Yes, We welcome your sample order, and we're also willing to send you free sample to test and check quality. if we don't have stock , then you can place a sample order. Q2: How many days can I get my package after placing order? A: We arrange shipping in 24 business hours with 3-5 business days fast shipping method if stock is enough. Q3: Can I cutomize my own Logo/Design? A: Yes, you can, please email us or contact us via platform to confirm more details Q4:We have a commercial project,Can you help offer a optical design solution ? A:Yes, we have seveal enginners who are experieced in optical design for many application , please send us more detail of your project,we will give our best advice. Q5: What shipping methods do you use? A: As to international shipping from China, the lights will be shipped via Fedex, UPS, DHL, EMS, etc. If you would like to specify a shipping method or carrier, please let us know and we will do our best to arrange it for you. |
Optical prism has many applications. Customers with special needs may need to order customised optical prisms to obtain the required results. At DG Optics, we design and manufacture highquality precision optical prism lenses according to unique specifications. Check out our options to build your own lenses, or request a quotation to see how DG provides customized lenses, optical prism lenses or other optical solutions at competitive prices.
Product Categories : Optical Prisms

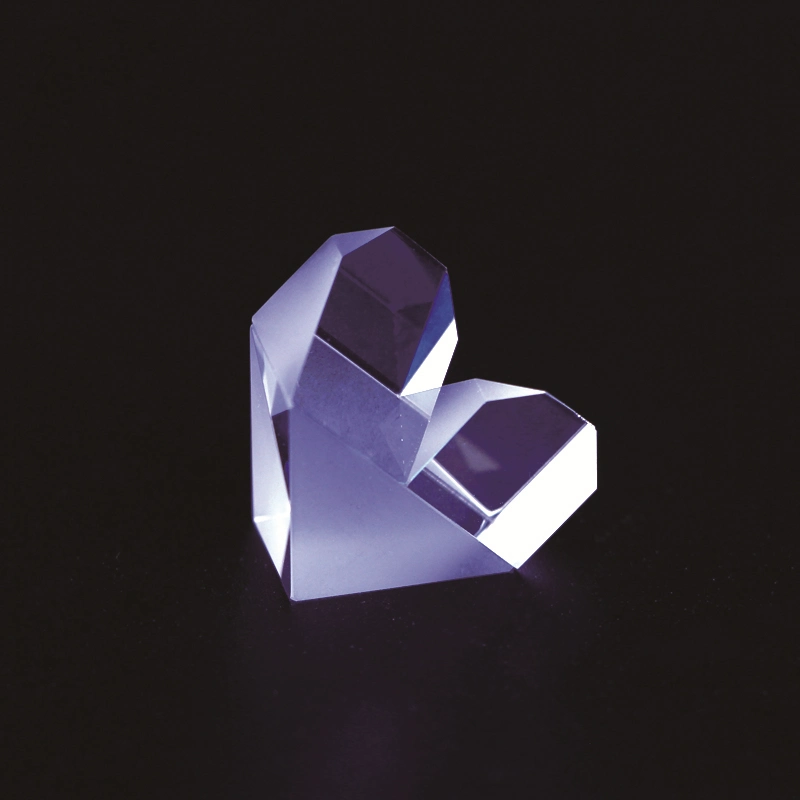

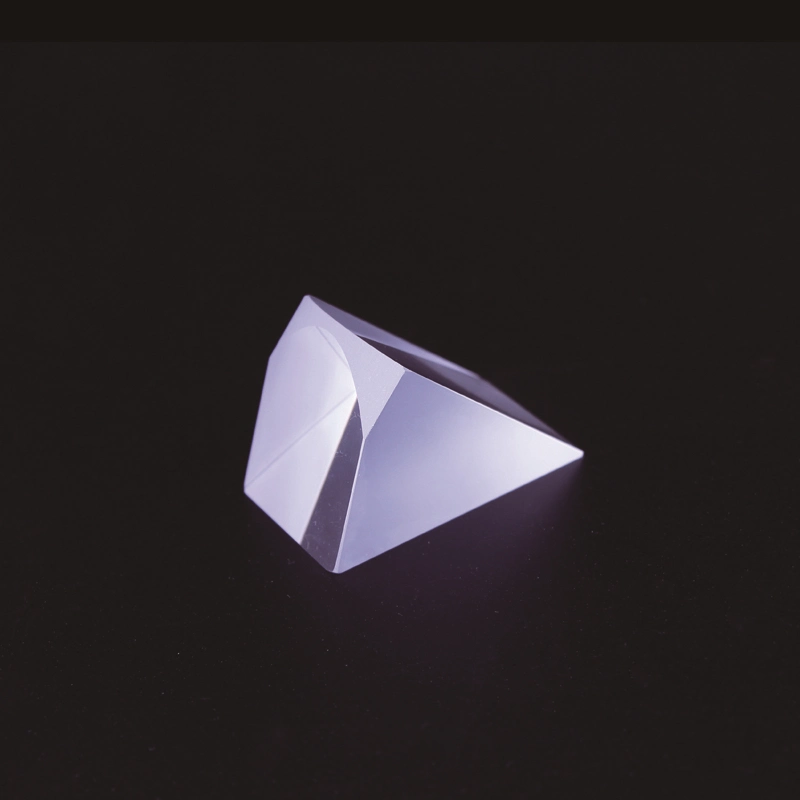

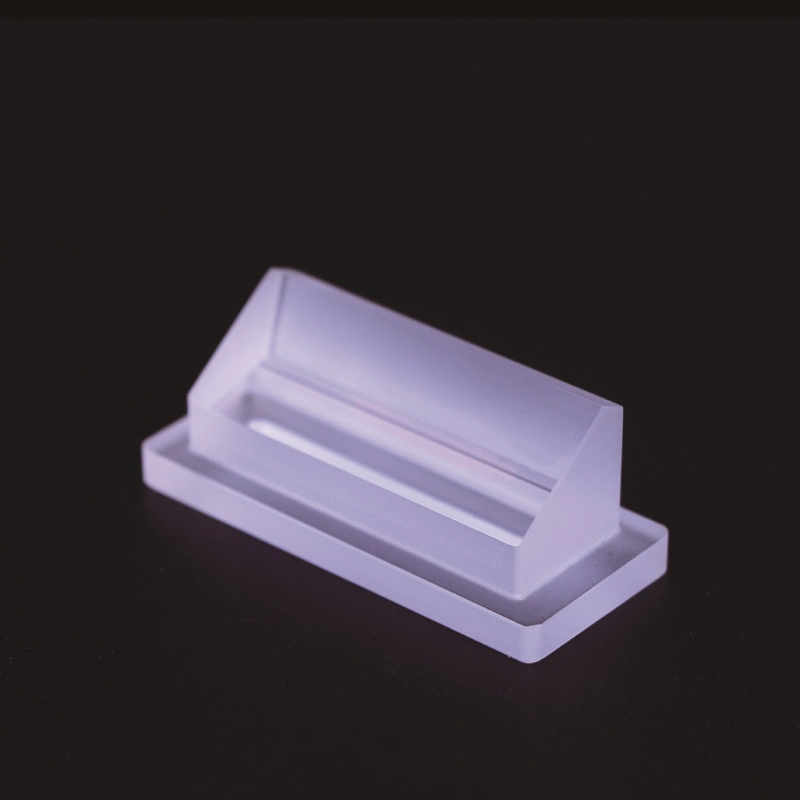

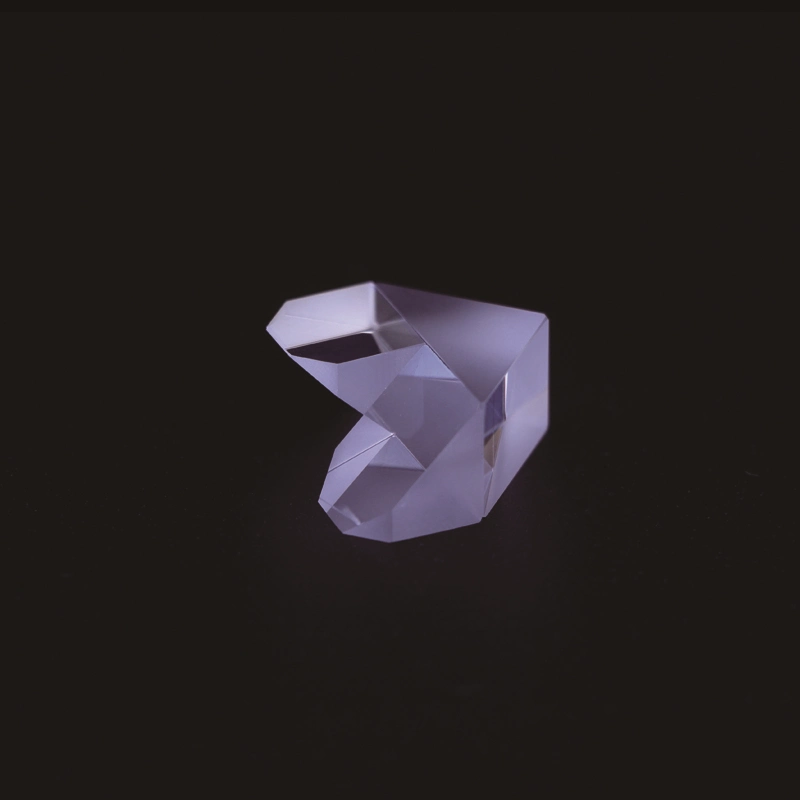

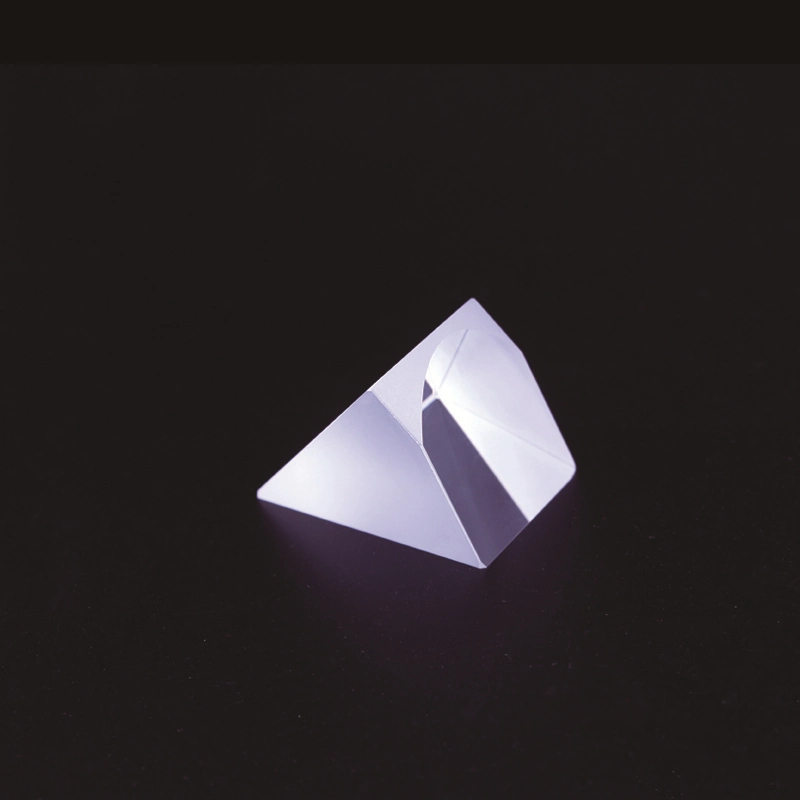

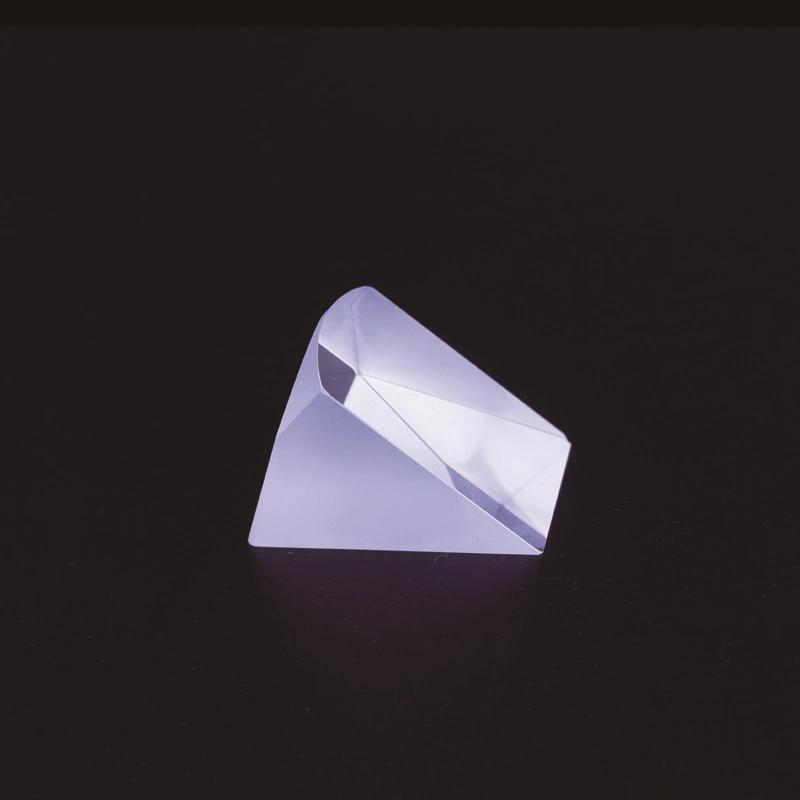

Product Images
