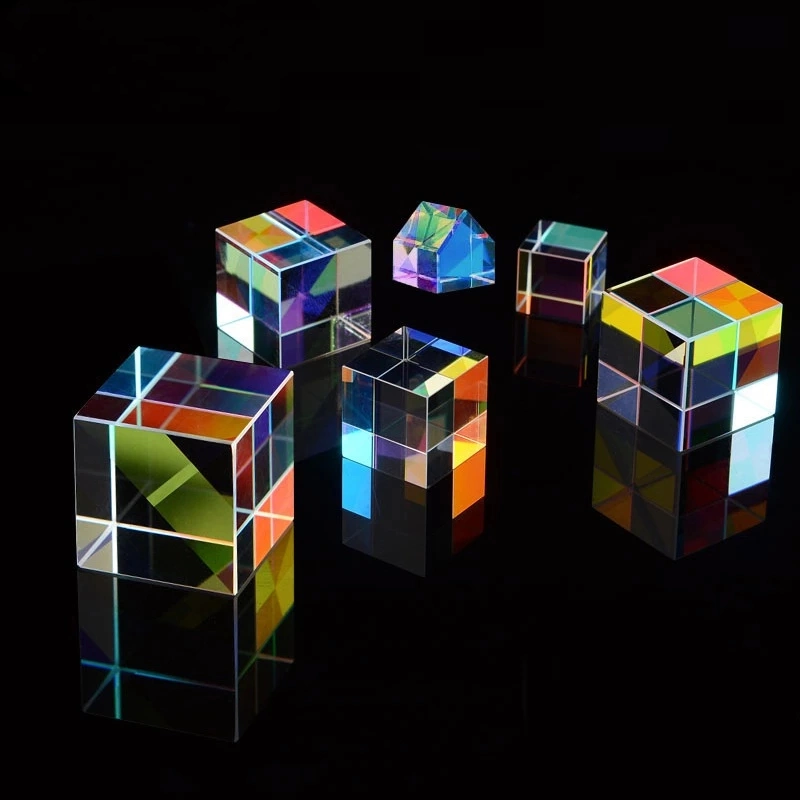

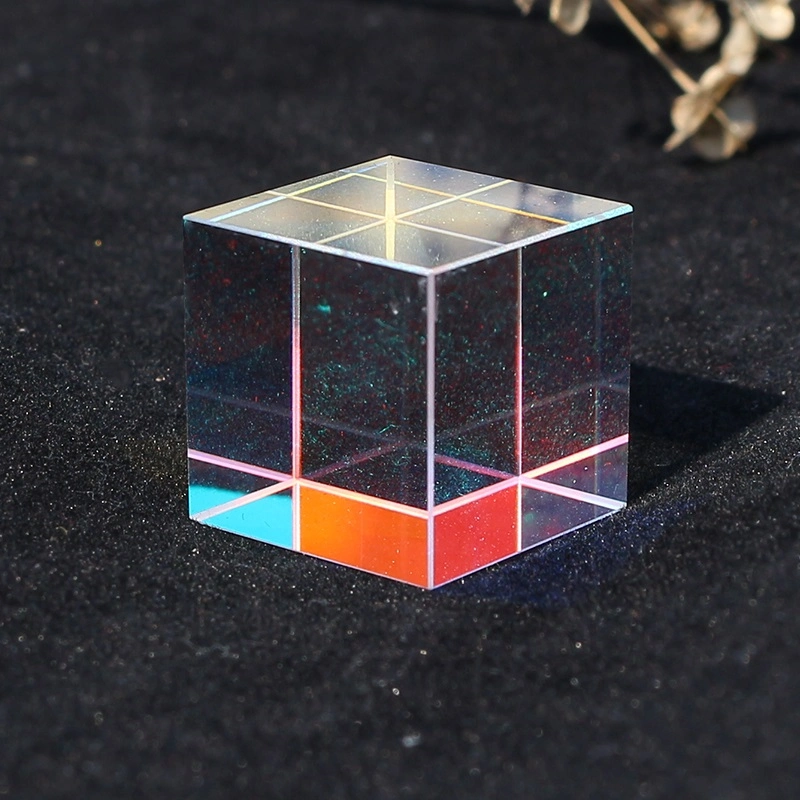

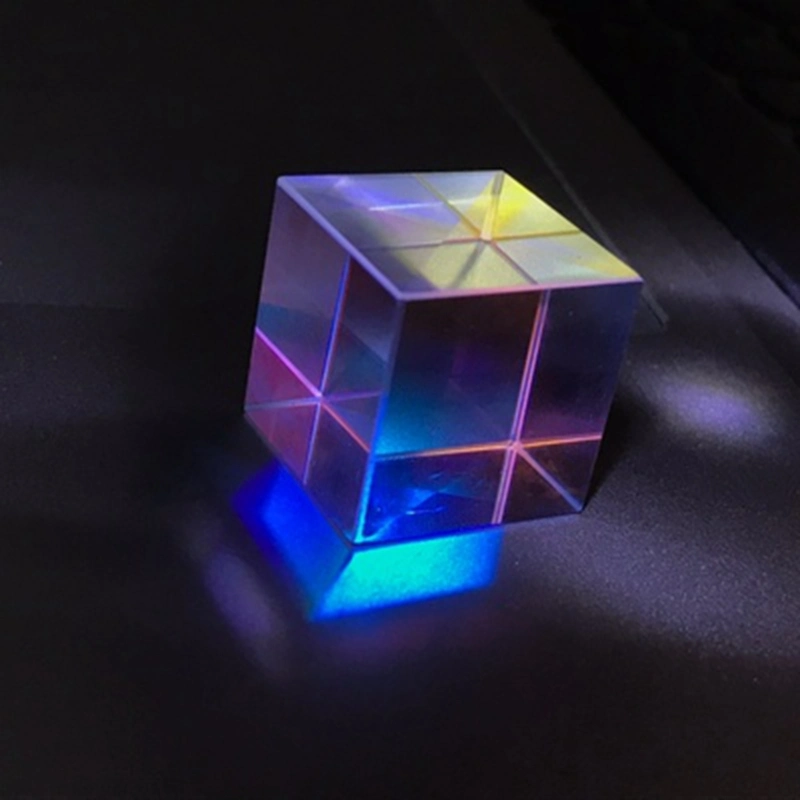

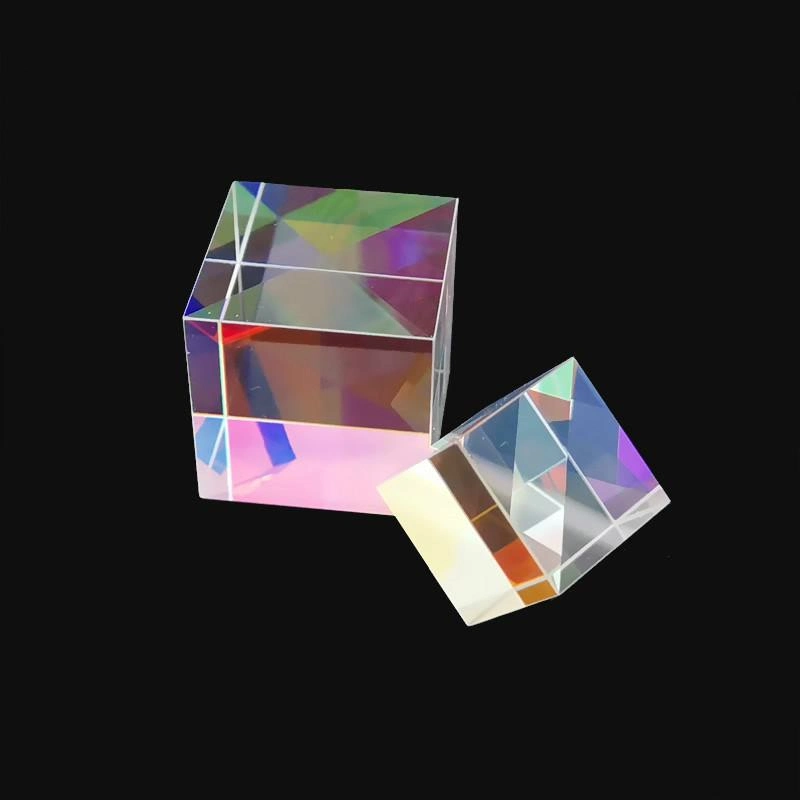

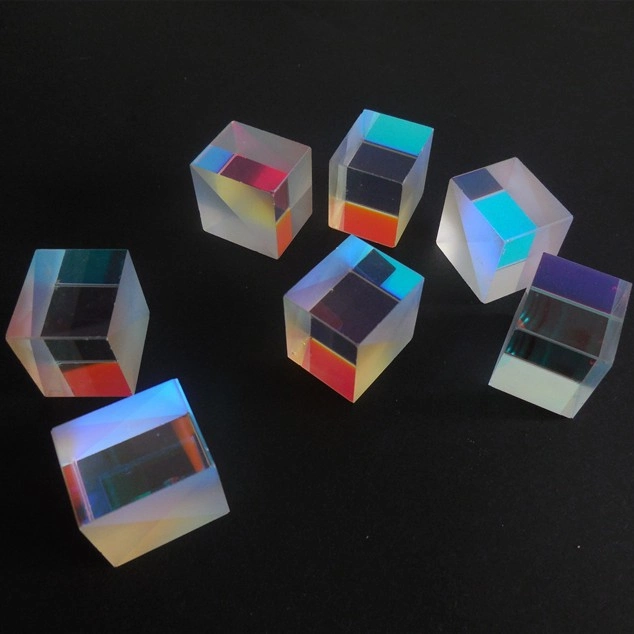

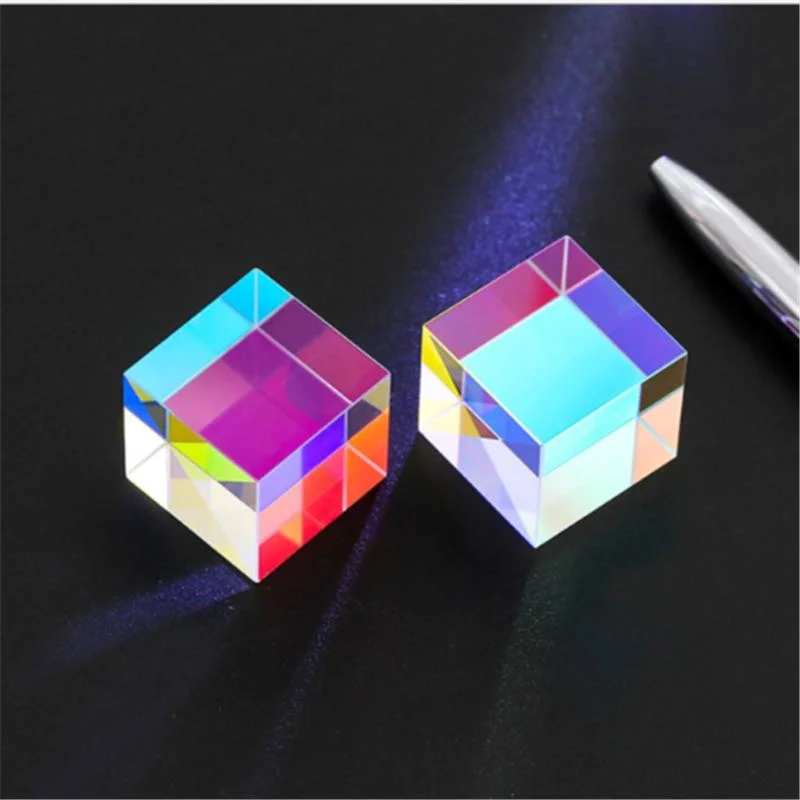

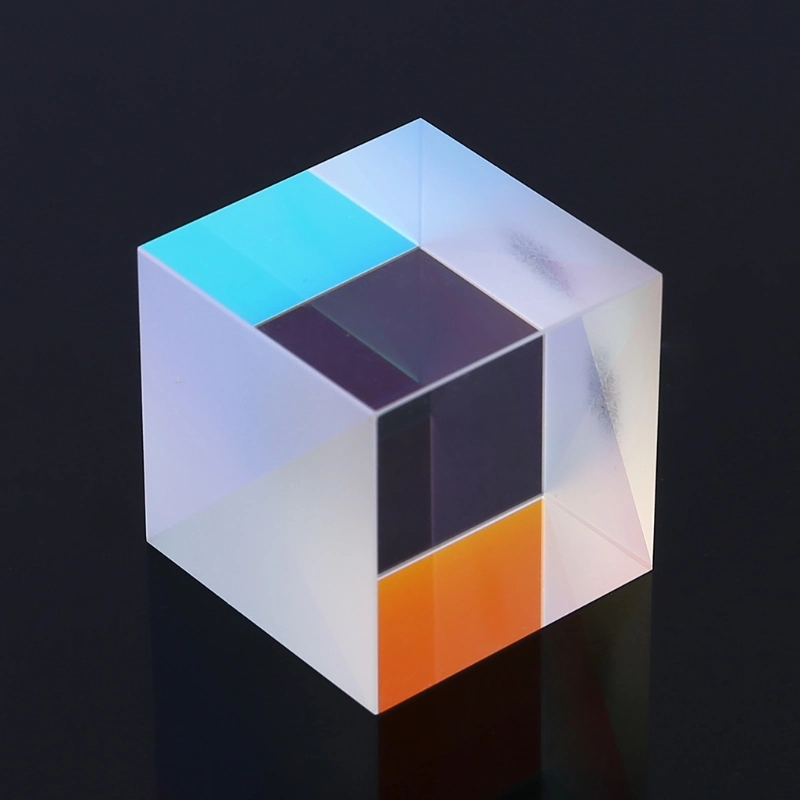

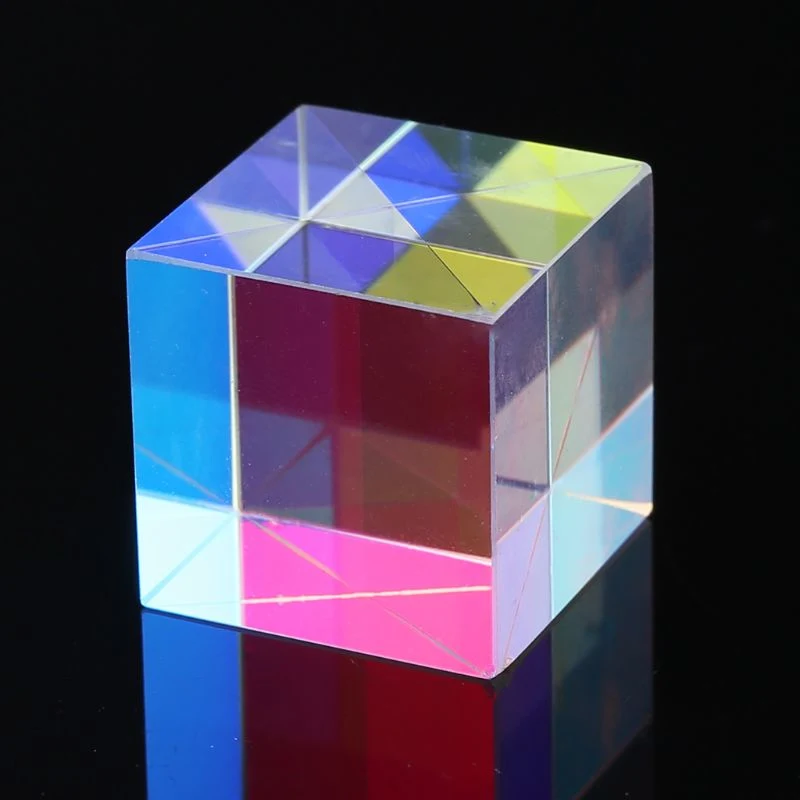

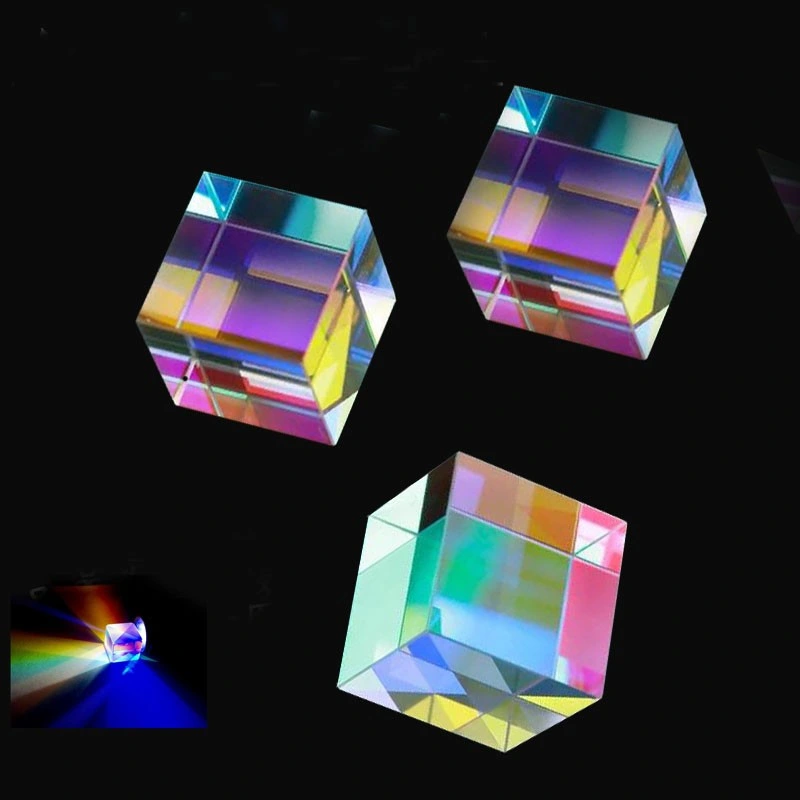

Optical Bk7 Splitting Cube Prisms
Basic Info
Material: Glass
Customized: Customized
Origin: China
Trademark: DG
HS Code: 9001909001
Production Capacity: 300.000 PCS /Month
Transport Package: Security and Environment Protection
Specification: BK7 glass or quartz
Type: Rectangular Prism
Usage: Beam Dispersion, Beam Split
Shape: Cube Corner Prism
Application: Digital Device
Model NO.: DG-M-P017
Product Description
- Overview
- Product Description
- Product Parameters

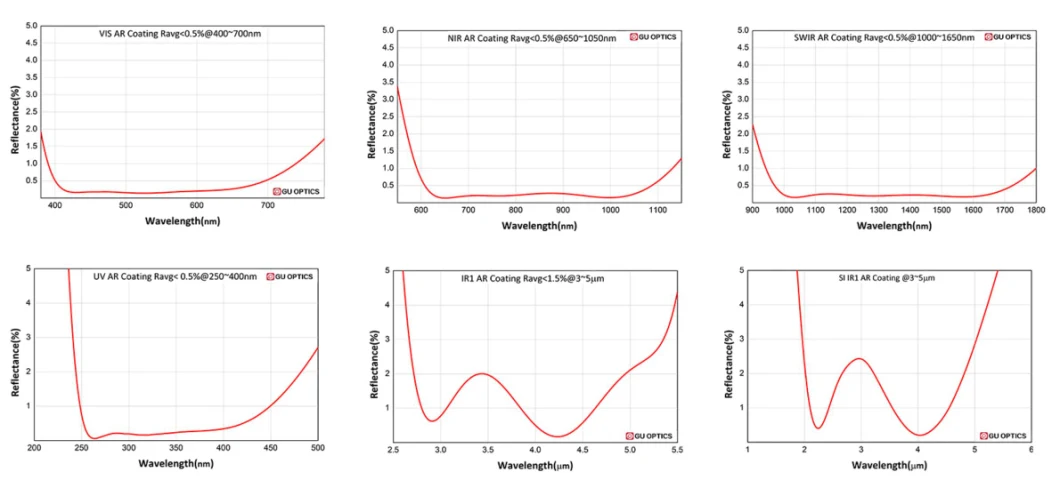

- Coating as your quired

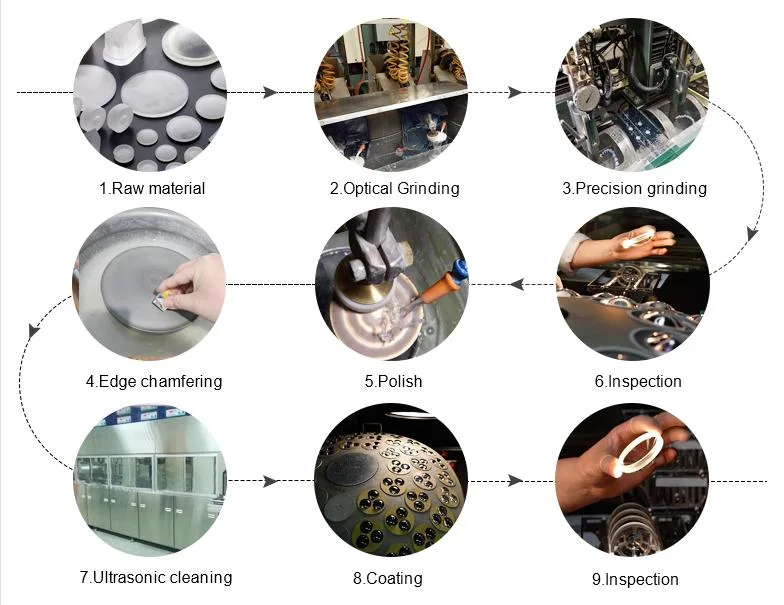

- Production Process
- Optical design centre
- Packaging & Shipping
- FAQ
- Company Profile
Basic Info.
Product Description
Optical Prisms are used to redirect light at a designated angle. Optical Prisms are ideal for ray deviation, or for adjusting the orientation of an image. An Optical Prism's design determines how light interacts with it. When light enters an Optical Prism, it either reflects off an individual surface or several surfaces before exiting, or is refracted as it travels through the substrate.
Application:
This application is utilized by refractometer and spectrographic components. Since this initial discovery, prisms have been used in "bending" light within a system, "folding" the system into a smaller space, changing the orientation (also known as handedness or parity) of an image, as well as combining or splitting optical beams with partial reflecting surfaces. These uses are common in applications with telescopes, binoculars, surveying equipment, and a host of others.
| Place of Origin: | Jiangsu,China, 2 hours by car from Shanghai |
| Brand Name: | DG Optics |
| Material | BK7 ,Fused silica, Quarzt, Si, Ge, ZnSe |
| Coating | UV, IR , SWIR, NIR ,VIS |
| Structure: | round,square,rectangular |
| Surface Quality: | 40/20, 60/40 |
| Pyramid Tolerance (arcmin) | ±1 |
| Chamfer | 0.1-0.3 mm*45 degree |
| Surface Flatness | λ/20 |
| Angle Tolerance (arcsec) | ±15 |
| Q1:Can you send me free sample or Can I have a sample order ? A: Yes, We welcome your sample order, and we're also willing to send you free sample to test and check quality. if we don't have stock , then you can place a sample order. Q2: How many days can I get my package after placing order? A: We arrange shipping in 24 business hours with 3-5 business days fast shipping method if stock is enough. Q3: Can I cutomize my own Logo/Design? A: Yes, you can, please email us or contact us via platform to confirm more details Q4:We have a commercial project,Can you help offer a optical design solution ? A:Yes, we have seveal enginners who are experieced in optical design for many application , please send us more detail of your project,we will give our best advice. Q5: What shipping methods do you use? A: As to international shipping from China, the lights will be shipped via Fedex, UPS, DHL, EMS, etc. If you would like to specify a shipping method or carrier, please let us know and we will do our best to arrange it for you. |
DG Optics specializes in the development, production, and sales of optical products made of any material including BK7,quartz,sapphire etc. The product line covers thousands of categories, such as Dove Prisms, Filters, Rod Lenses, and sapphire watch Windows. Applications include defense and security, aerospace, optical ball covers for underwater cameras, automotive, medical, entertainment and design lighting, electronics and optoelectronics, laser technology, energy and utilities, universities and research, imaging lenses, microscopic inspection, and other industries. Many products and technologies have obtained national patents and software Copyrights, and have been approved by ISO9001 certificate.

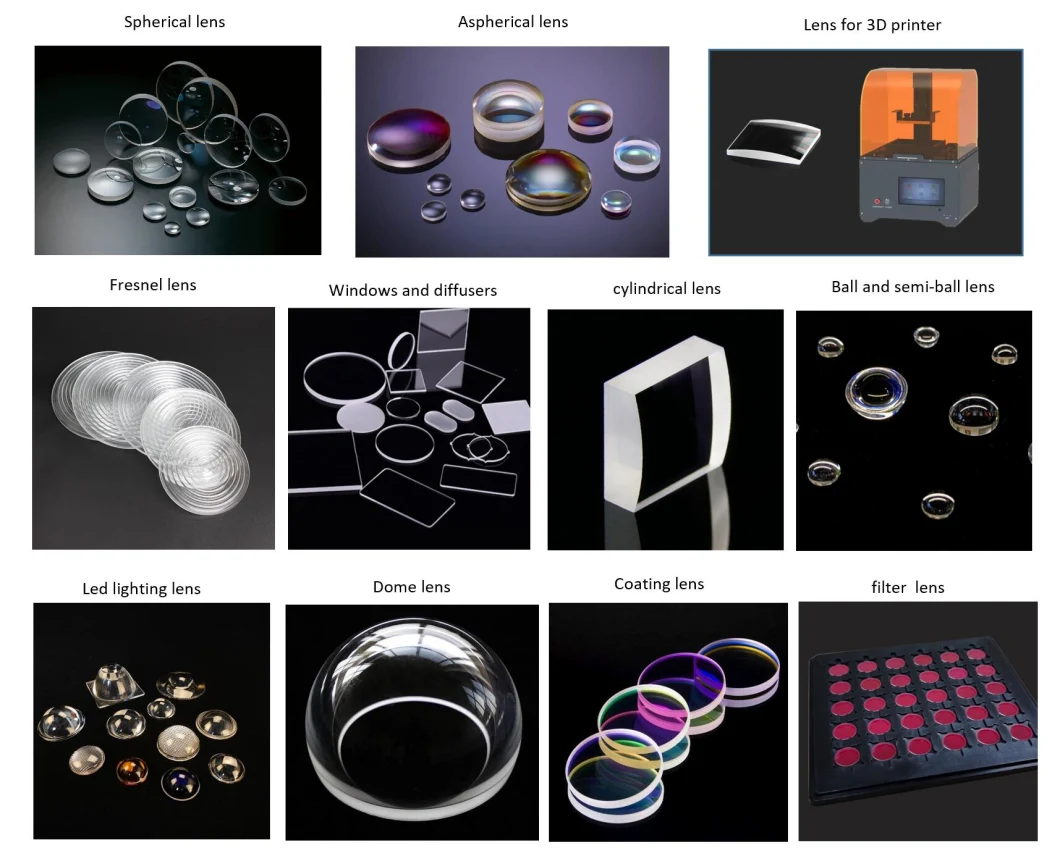

Other Lens Types:
